Combination Nipples
-

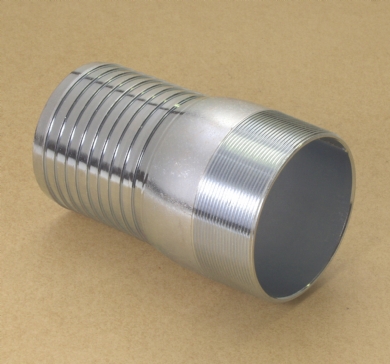

THREADED HOSE TAILS
|
|
|
|
|
|
Hose nipples made from stainless steel, brass or aluminium. These fittings are designed to be used where an economic coupling is required. Available in BSPT or NPT threads.
|
|
|
Notes
|
Larger sizes maybe manufactured on request, subject to a minimum quantity.
Weld type in Stainless 316 available Type 269.
|
| Thread Size | Hose Size | Stainless 316 | | Brass | Aluminium |
| Inch | Inch | BSP | NPT | NPT | NPT |
| | | | | | |
| 1/2" - 05 | 1/2" | 250SS- 05 | 265SS- 05 | 266B- 05 | 267A- 05 |
| 3/4" - 07 | 3/4" | 250SS- 07 | 265SS- 07 | 266B- 07 | 267A- 07 |
| 1" - 10 | 1" | 250SS- 10 | 265SS- 10 | 266B- 10 | 267A- 10 |
| 1 1/4" - 12 | 1 1/4" | 250SS- 12 | 265SS- 12 | 266B- 12 | 267A- 12 |
| 1 1/2 - 15 | 1 1/2" | 250SS- 15 | 265SS- 15 | 266B- 15 | 267A- 15 |
| 2" - 20 | 2" | 250SS- 20 | 265SS- 20 | 266B- 20 | 267A- 20 |
| 2 1/2 - 25 | 2 1/2" | 250SS- 25 | 265SS- 25 | 266B- 25 | |
| 3" - 30 | 3" | 250SS- 30 | 265SS- 30 | 266B- 30 | 267A- 30 |
| 4" - 40 | 4" | 250SS- 40 | 265SS- 40 | 266B- 40 | 267A- 40 |
| 5" - 50 | 5" | 250SS- 50 | 265SS- 50 | 266B- 50 | |
| 6" - 60 | 6" | 250SS- 60 | 265SS- 60 | 266B- 60 | 267A- 60 |
| 8" - 80 | 8" | 250SS- 80 | 265SS- 80 | | |
|
|
|
THREADED HOSE TAILS THREADED HOSE TAILS
Hose nipples made from stainless steel, brass or aluminium. These fittings are designed to be used where an economic coupling is required. Available in BSPT or NPT threads.
|
|
|
THREADED HOSE TAILS THREADED HOSE TAILS
Hose nipples made from tube that has been swaged out and threaded. Usually zinc plate, clear passivate. These hose tails offer an economical method of hose end connection to pipework, flanges or other couplings.
|
|
|
|
