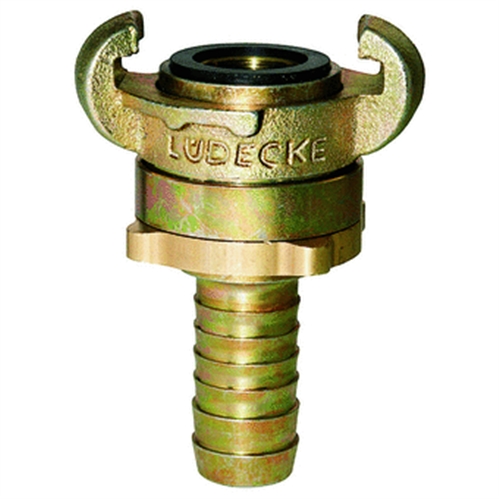

LUDECKE TYPE AIR COUPLINGS
|
|
|
|
|
|
DIN type double look quick coupling. Just twist the two halves together and tighten the rear knurled ring ensuring a secure joint. These couplings conform to DIN 3238. Very high flow rates are achieved through the maximum bore size. Head is made from malleable iron and the shank is from machined steel.
|
|
|
Notes
|
All couplings are rated at 242 psi.
Material is mild steel, zinc plated and gold passivated body with a malleable iron head. Standard seal is Perbunan rubber.
We recommend the use of a whipcheck device for all compressed air applications.
|
| Size | Hose Tail | Female Thread | Male Thread |
| Inch | | BSP | BSP |
| 3/8" - 06 | 300L-Q1- 06 | 300L-Q2- 06 | 300L-Q3- 06 |
| 1/2" - 08 | 300L-Q1- 08 | 300L-Q2- 08 | 300L-Q3- 08 |
| 5/8" - 10 | 300L-Q1-10 | | |
| 3/4" - 12 | 300L-Q1- 12 | 300L-Q2- 12 | 300L-Q3- 12 |
| 1" - 16 | 300L-Q1- 16 | 300L-Q2- 16 | 300L-Q3- 16 |
|
|
|
