PCL and Schrader Air Couplings
-

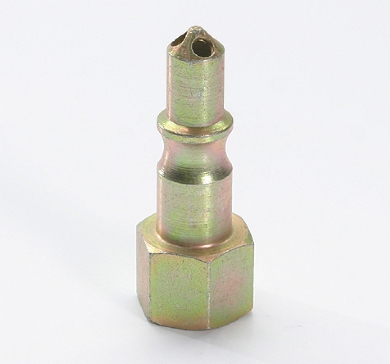

PCL '60' SERIES
|
|
|
|
|
|
'60' series couplings fulfil those requirements that fall between standard and '100' series couplings. This is a tough coupling for a tough job. Robust and resistant to abuse, the '60' series out-performs many other similar types.
|
|
|
Notes
|
Free flow air rate, at 7 bar (100 lb/in2)
55 to 60ft3/min
|
| Check Unit | PART NO. |
| | |
| BSP(taper) female thread | M-AC-PCL-60-04F |
| BSP(taper) female thread | M-AC-PCL-60-06F |
| BSP(taper) female thread | M-AC-PCL-60-08F |
| BSP(taper) male thread | M-AC-PCL-60-04M |
| BSP(taper) male thread | M-AC-PCL-60-06M |
| BSP(taper) male thread | M-AC-PCL-60-08M |
| | |
| Threaded Adaptor | |
| | |
| 1/4" BSPT Male | M-AC-PCL-60-04MA |
| 3/8" BSPT Male | M-AC-PCL-60-06MA |
| 1/4" BSP Female | M-AC-PCL-60-04FEM |
| 3/8" BSP Female | M-AC-PCL-60-06FEM |
| | |
| Hose Tail Adaptor | |
| | |
| 5/16" Hose Tail | M-AC-PCL-60-05TAIL |
| 3/8" Hose Tail | M-AC-PCL-60-06TAIL |
| 1/2" Hose Tail | M-AC-PCL-60-06TAIL |
|
|
|
PCL STANDARD SERIES PCL
A UK standard quick acting coupling for compressed air applications. Made from corrosion resistant materials, this range of couplings offers superior flow characteristics.
|
|
|
PCL 100 SERIES PCL '100' SERIES
This extra heavy duty coupling is designed for use in a demanding environment. Built to withstand aggressive use, this coupling also offers impressive flow rates.
Free flow air rate, at 7 bar (100 lb/in2)
100 to 120ft3/min
|
|
|
|
|
PCL 60 SERIES PCL '60' SERIES
'60' series couplings fulfil those requirements that fall between standard and '100' series couplings. This is a tough coupling for a tough job. Robust and resistant to abuse, the '60' series out-performs many other similar types.
|
|
|
PCL EURO PCL EURO
This is the standard continental European style air coupling. This range is neat and attractive in appearance and offers good flow and handling characteristics. A wide range of adaptors compliment this coupling.
|
|
|
SCHRADER SCHRADER
These couplings are very well known in the UK market and have been around for many years. Neat in style and appearance, these couplings are used extensively in the UK for many different airline applications.
|
|
|
SCHRADER SCHRADER
This is the heavy duty version of the standard series. A robust and solidly built coupling, it is used where arduous working practices may be encountered.
|
|
|
SCHRADER SCHRADER
Standard series hose tails are available in a variety of hose sizes. All PCL tails are zinc plated with a clear passivate.
|
|
|
SCHRADER SCHRADER
Standard duty BSP adaptors come in male or female threads. Special adaptors can be made to customer requirements.
|
|
|
SCHRADER SCHRADER
Heavy duty adaptors are available in threaded or hose tail versions. Special configurations are available subject to quantity.
|
|
|
|
