Air Conditioning Hose
-

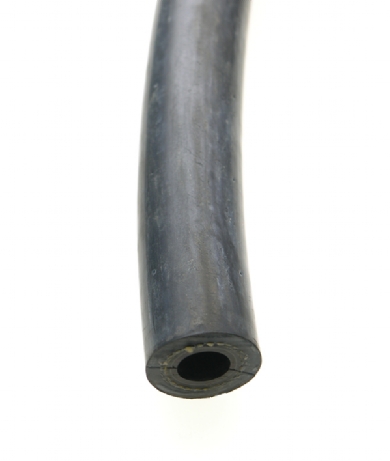

ZEPHYR 5020
|
|
|
|
|
|
Designed for automotive and commercial air conditioning systems. This hose has a low permeability and is highly flexible.
|
|
|
Colour
|
Black cover/Black liner.
|
|
Cover
|
CSM Rubber
|
|
Lining
|
Butyl compound
|
|
Reinforcement
|
Single steel wire braid
|
|
Specification
|
Fully complies to SAE J 2064 Type B
|
|
Remarks
|
Range of crimp and reusable fittings available for this hose
|
|
Application
|
Suitable for R134a, R404a and PAG/POE oils
|
|
Temperature
|
-40°C to +125°C.
|
| ID | ID | OD | WP | WP | Bend Radius | Availability |
| Inch | mm | mm | psi | bar | mm | |
| 3/16" | 5 | 13 | 525 | 35 | 85 | ** |
| 5/16" | 8 | 17.2 | 525 | 35 | 85 | * |
| 13/32" | 10.3 | 19.3 | 525 | 35 | 95 | * |
| 1/2" | 13 | 23.4 | 525 | 35 | 115 | * |
| 5/8" | 16 | 27.3 | 525 | 35 | 135 | * |
| 7/8" | 22 | 31.2 | 525 | 35 | 155 | * |
| 1 1/8" | 28 | 38 | 525 | 35 | 190 | ** |
| 1 3/8" | 35 | 45 | 525 | 35 | 230 | ** |
| * | Usually 2 days | ** | 7-10 days | | | |
|
|
|
