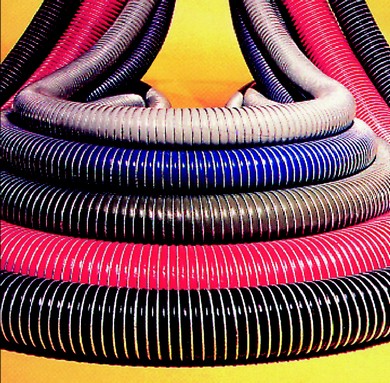

Composite Hose
-
SAUDI-FLEX 0971
|
|
|
|
|
|
Hose designed to convey aggressive chemicals made up of PTFE/polypropylene layers supported by a double wire helix. Swaged ends.
|
|
|
Colour
|
Blue or green cover.
|
|
Cover
|
PTFE/Polypropylene.
|
|
Lining
|
PTFE/Polypropylene.
|
|
Reinforcement
|
Internal/external stainless wire helix.
|
|
Specification
|
Fully complies to BS 5842.
|
|
Remarks
|
Note! External wire is normally galvanised.
|
|
Temperature
|
-30°C to +115°C.
Available in up to 16" bore.
|
| ID | ID | OD | WP | WP | Weight | Bend Radius | Availability |
| Inch | mm | mm | psi | bar | Kgs/metre | mm | See under |
| 1" | 25 | 37 | 210 | 14 | 0.90 | 200 | |
| 1 1/4" | 32 | 44 | 210 | 14 | 1.20 | 200 | |
| 1 1/2" | 38 | 53 | 210 | 14 | 1.25 | 200 | |
| 2" | 51 | 63 | 210 | 14 | 1.70 | 225 | |
| 2 1/2" | 63 | 78 | 210 | 14 | 2.80 | 225 | |
| 3" | 76 | 95 | 210 | 14 | 2.95 | 300 | |
| 3 1/2" | 89 | 98 | 210 | 14 | 3.70 | 350 | |
| 4" | 102 | 122 | 210 | 14 | 6.00 | 400 | |
| 6" | 152 | 175 | 210 | 14 | 12.40 | 575 | |
| 8" | 203 | 231 | 210 | 14 | 21.80 | 725 | |
| 10" | 254 | 284 | 210 | 14 | 25.10 | 900 | |
| 12" | 305 | 345 | 210 | 14 | 32.00 | 1100 | |
| Built to order | | | | | | | |
|
|
|
SAUDI-FLEX SAUDI-FLEX 0970
Composite hose built by using thermoplastic layers supported internally and externally by a galvanized and aluminium wire helix. Tough, yet lightweight hose for transport of hydrocarbons etc. Ends are swaged for maximum integrity.
|
|
|
SAUDI-FLEX SAUDI-FLEX 0971
Hose designed to convey aggressive chemicals made up of PTFE/polypropylene layers supported by a double wire helix. Swaged ends.
|
|
|
|
|
SAUDI-FLEX SAUDI-FLEX 0980
Vapour recovery hoses are specially manufactured for use on vapour return lines. Light and flexible yet strong enough to cope with on road and rail tanker applications.
Ends are swaged using carbon steel ferrules.
|
|
|
SAUDI-FLEX SAUDI-FLEX 0982
Multi plies of heavy duty polypropylene fabric and film are used to create a large bore hose for transfer of hydrocarbons, yet, still very flexible. Stainless steel inner and outer helical wire.
|
|
|
|
