Stainless Metallic Hose
-

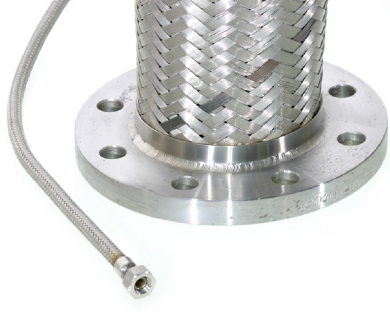

JUPITER 4800
|
|
|
|
|
|
Double wire overbraided metallic hose with stainless core and braid. Used where higher pressures are required. This hose gives long life performance and is used in arduous conditions.
|
|
|
Colour
|
Natural stainless finish.
|
|
Cover
|
Stainless double steel braid T304 or 316 on request
|
|
Lining
|
Convoluted stainless T304 or 316 on request
|
|
Reinforcement
|
Double stainless braid T304 or 316 on request
|
|
Specification
|
Fully complies to SAE 100R14.
|
|
Remarks
|
Can be supplied in close pitch, with or without outer braiding.
Note: pressure data does not apply for unbraided hoses.
|
|
Special Features
|
All pressure ratings based on ambient temperature
|
|
Temperature
|
-150°C to +700°C.
|
| ID | ID | WP | Bend Radius | Weight/M |
| Inch | mm | Psi | mm | Kgs |
| 1/4" | 6 | 3626 | 100 | 0.40 |
| 3/8" | 10 | 2610 | 125 | 0.58 |
| 1/2" | 13 | 2320 | 125 | 0.71 |
| 3/4" | 19 | 1350 | 150 | 0.80 |
| 1" | 25 | 1120 | 180 | 1.13 |
| 1 1/4" | 32 | 900 | 200 | 1.70 |
| 1 1/2" | 38 | 670 | 250 | 2.35 |
| 2" | 51 | 625 | 350 | 3.05 |
| 2 1/2" | 63 | 540 | 500 | 3.90 |
| 3" | 76 | 490 | 525 | 4.55 |
| 4" | 102 | 260 | 625 | 8.05 |
| 5" | 127 | 280 | 735 | 9.10 |
| 6" | 152 | 230 | 900 | 11.00 |
| 8" | 203 | 200 | 1020 | 15.50 |
|
|
|
