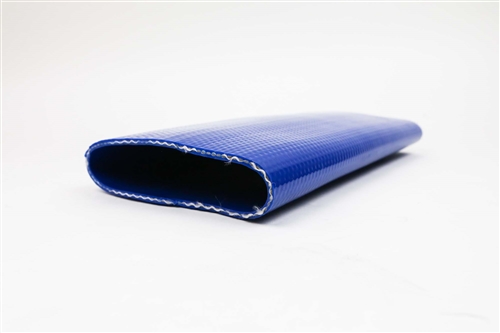

    Oroflex ™ - OROFLEX 30

High pressure layflat hose for use with potable water. Also used as a drag hose in sludge to land recycling. Oroflex 30 is made from a tough polyurethane rubber and is designed for use in tough environments.

Click to enlarge - High pressure layflat hose for use with potable water. Also used as a drag hose in sludge to land recycling. Oroflex 30 is made from a tough polyurethane rubber and is designed for use in tough environments.


Click to enlarge - High pressure layflat hose for use with potable water. Also used as a drag hose in sludge to land recycling. Oroflex 30 is made from a tough polyurethane rubber and is designed for use in tough environments. Click to enlarge - High pressure layflat hose for use with potable water. Also used as a drag hose in sludge to land recycling. Oroflex 30 is made from a tough polyurethane rubber and is designed for use in tough environments.
Colour Blue or Green
Cover Polyurethane cover and liner
Reinforcement Polyester jacket
Specification Materials approved to NSF61 and KTW
Exceeds WRAS standards
Remarks Very hard wearing.
Application Used as a drag hose for slurry and also for potable water
Special Features Lengths of up to 200 metres
Special production of up to 450 metre un-stabilised can be ordered
Temperature -50°C to +70°C.

IDIDWallCoil SizesWPBend RadiusEnd PullWeight/MAvailability
InchmmmmMpsimmKgGr/mt
3"773.320022012505525890*
4"1053.5200255175068001300Ex-stock
4 1/2"1153.5200210180070001500*
5"1303.7200200190085001700Ex-stock
5 1/2"1403.7200200195092501900*
6"1523.82001752000101002100*
8"2034.02001502750175002600**
10"2544.52001503300225004100**
*8 weeks**6 weeks
