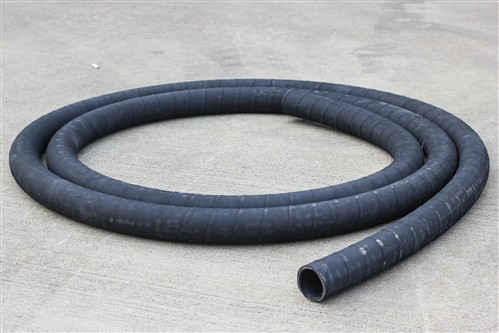

CHINOOK 1220
|
|
|
|
|
|
Premium quality medium pressure textile reinforced air hose offering good flexibility and bend radius throughout the size range. Handles well and suited to most compressed air or water applications.
|
|
|
Colour
|
Yellow or black cover / Black lining
|
|
Cover
|
SBR Rubber, weather and abrasion resistant
|
|
Lining
|
Oil mist resistant SBR/NBR rubber.
|
|
Reinforcement
|
2 plies high tensile textile cords
|
|
Specification
|
Fully complies to BS 5118/3 and BS ISO 2398 : 1987
|
|
Remarks
|
Standard coils are 20 and 40m. Longer coils to 61 metres can be produced
|
|
Temperature
|
-30ºC + 80ºC
|
| ID | ID | OD | WP | WP | Weight | Availability |
| Inch | mm | mm | psi | bar | Kg/m | |
| 1/2" | 13 | 21 | 300 | 20 | 0.32 | * |
| 3/4" | 19 | 29 | 300 | 20 | 0.56 | * |
| 1" | 25 | 35 | 300 | 20 | 0.70 | * |
| 1 1/4" | 32 | 44 | 300 | 20 | 0.89 | * |
| 1 1/2" | 38 | 50 | 300 | 20 | 1.04 | * |
| 2" | 51 | 65 | 300 | 20 | 1.66 | * |
| 2 1/2" | 63 | 79 | 300 | 20 | 2.30 | ** |
| 3" | 76 | 92 | 300 | 20 | 2.81 | * |
| 4" | 102 | 118 | 300 | 20 | 3.67 | ** |
| * | usually ex-stock | ** | 7 days | | | |
|
|
|
CHINOOK CHINOOK 1210
Standard mandrel built air hose for applications less demanding than for types 1240 and 1220. Also suitable for water. This hose is tough and yet pliable and is available in a good size range.
|
|
|
CHINOOK CHINOOK 1220
Premium quality medium pressure textile reinforced air hose offering good flexibility and bend radius throughout the size range. Handles well and suited to most compressed air or water applications.
|
|
|
CHINOOK CHINOOK 1240
High pressure, steel wire reinforced air hose. Also suitable for high pressure water and slurries. This very robust hose would be used on high volume compressors in construction, mines and industrial applications. A hose for use where maximum safety is required.
|
|
|
CHINOOK CHINOOK 1260
Hot air transfer between the air compressor and dry bulk tank on bulk material carriers. Can be used in most applications where hot air is used under low pressures.
|
|
|
CHINOOK CHINOOK 2008
A premium quality, long length moulded air hose for general workshop uses. Made from a special rubber/PVC alloy, this hose handles well and provides a very reliable product at a competitive price. Can be supplied in different colours to order.
|
|
|
CHINOOK CHINOOK 3310
Medium pressure anti-static air hose for general industrial use. Used where electrical continuity is required or when extra electrical safety is required. The hose has a high carbon content and fully complies to BS2050.
|
|
|
|
