BRASS & STAINLESS HOSE TAILS Copper Tubes
|
|
|
|
|
|

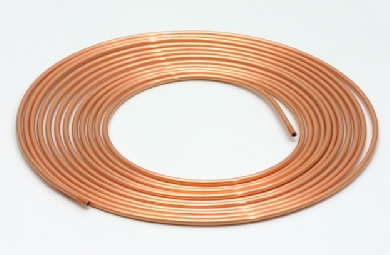

Imperial and metric soft copper tubing is stocked in 10 metre or 30 metre coils. This tubing is fully annealed allowing very tight bends to be formed and the ends to be easily flared.
|
|
|
Colour
|
Natural copper
|
|
Cover
|
Copper
|
|
Lining
|
Copper
|
|
Specification
|
EN12735 C106 [Formerly BS2871/2]
|
|
Application
|
Used in automotive, control, air and oil lines
|
|
Special Features
|
Fully annealed
|
| Imperial | | | | Availability | Metric | | | | Availability |
| OD | Gauge | Working pressure | Coils | | OD | Wall | Working Pressure | Coils | |
| | | [psi] | Metres | | | | [psi] | Metres | |
| 1/8" | 22 | 3026 | 10/30 | * | 4 | 0.6 | 1993 | 10/30 | * |
| 3/16" | 22 | 1978 | 10/30 | * | 5 | 0.8 | 2124 | 10 | * |
| 1/4" | 22 | 1484 | 10/30 | * | 6 | 0.8 | 1760 | 10/30 | ** |
| 1/4" | 20 | 1891 | 10/30 | ** | 6 | 1.0 | 2211 | 10/30 | * |
| 5/16" | 22 | 1178 | 10/30 | * | 8 | 0.8 | 1324 | 10/30 | ** |
| 5/16" | 20 | 1513 | 10/30 | ** | 8 | 1.0 | 1658 | 10/30 | * |
| 3/8" | 22 | 974 | 10/30 | ** | 10 | 0.8 | 1047 | 10/30 | ** |
| 3/8" | 20 | 1261 | 10/30 | * | 10 | 1.0 | 1324 | 10/30 | * |
| 3/8" | 18 | 1682 | 10/30 | ** | 10 | 1.2 | 1585 | 10/30 | ** |
| 3/8" | 16 | 2284 | 10/30 | ** | 12 | 1.0 | 1091 | 10/30 | * |
| 1/2" | 20 | 945 | 10/30 | * | 12 | 1.2 | 1309 | 10/30 | ** |
| 1/2" | 18 | 1265 | 10/30 | ** | 15 | 1.0 | 1265 | 10/30 | ** |
| 1/2" | 16 | 1702 | 10/30 | ** | | | | | |
| 5/8" | 20 | 742 | 10 | ** | | | | | |
| 3/4" | 20 | 625 | 10 | ** | | | | | |
| 3/4" | 16 | 1105 | 10 | | | | | | |
| * | Usually ex-stock | ** | 3 days from order | | | | | | |
|
|
|
|
