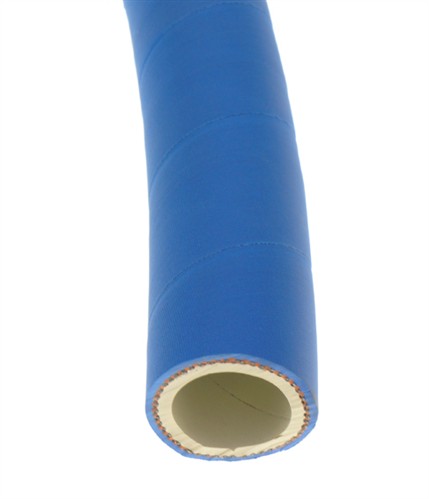

CHINOOK 953AE
|
|
|
|
|
|
General purpose hose used for nitrogen and chemical service. Reinforced by high tensile textile cords. Very flexible and abrasion resistant hose suitable for a wide variey of applications.
|
|
|
Colour
|
Blue cover with a blue or white lining
|
|
Cover
|
EPDM special compound
|
|
Lining
|
EPDM special compound
|
|
Reinforcement
|
Multiple plies polyester reinforcing cords
|
|
Specification
|
|
|
Remarks
|
4:1 Safety ratio
|
|
Application
|
For use with air, water, chemicals and nitrogen
|
|
Special Features
|
If using with gaseous media, maximum pressures are 6 bars across all bore sizes.
|
|
Temperature
|
-30C to + 80C
|
| ID | ID | OD | WP | WP | | Weight | Availability |
| Inch | mm | mm | psi | bar | | Kg/m | |
| 1/2" | 13.0 | 23.0 | 300 | 20 | | 0.35 | ** |
| 3/4" | 19.0 | 31.0 | 300 | 20 | | 0.58 | ** |
| 1" | 25.0 | 37.0 | 300 | 20 | | 0.73 | ** |
| 1 1/2" | 38.0 | 52.0 | 300 | 20 | | 1.07 | ** |
| 2" | 51.0 | 67.0 | 300 | 20 | | 1.88 | ** |
| 2 1/2" | 63.0 | 81.0 | 300 | 20 | | 2.30 | *** |
| 3" | 76.0 | 108.0 | 300 | 20 | | 3.79 | *** |
| * | Usually ex-stock | ** | 4 weeks | *** | On request | | |
|
|
|
|
|
|
