Materials Handling Hose
-

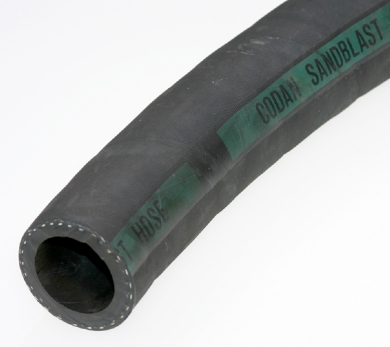

SAHARA 1600
|
|
|
|
|
|
General shotblast/gritblast and grouting hose for a variety of applications. This product offers good flexibility and wear life. Pin pricked cover.
|
|
|
Colour
|
Black cover/Black liner
|
|
Cover
|
High abrasion resistant and conductive synthetic rubber.
|
|
Lining
|
High abrasion resistant anti-static natural rubber
|
|
Reinforcement
|
High tensile textile yarns
|
|
Specification
|
Fully complies to DIN 53516
and BS EN ISO 3861 : 1997
(Formerly BS 5121 : 1975)
|
|
Remarks
|
Constant pressure hose
|
|
Application
|
For transfer of abrasive materials.
|
|
Special Features
|
Safety ratio. 3:1
|
|
Temperature
|
-35ºC - +85ºC
|
| ID | ID | OD | WP | WP | Weight | Availability |
| Inch | mm | mm | psi | bar | Kg/m | |
| 1/2" | 13 | 27 | 150 | 10 | 0.60 | * |
| 3/4" | 19 | 34 | 150 | 10 | 0.69 | * |
| 1" | 25 | 40 | 150 | 10 | 0.91 | * |
| 1 1/4" | 32 | 48 | 150 | 10 | 1.20 | * |
| 1 1/2" | 38 | 54 | 150 | 10 | 1.57 | * |
| | 40 | 60 | 150 | 10 | 1.81 | ** |
| 1 3/4" | 45 | 63 | 150 | 10 | 1.70 | ** |
| 2" | 51 | 69 | 150 | 10 | 1.91 | ** |
| 2 1/2" | 63 | 84 | 150 | 10 | 2.45 | ** |
| 3" | 76 | 98 | 150 | 10 | 2.88 | *** |
| 3 1/2" | 89 | 105 | 150 | 10 | 3.38 | *** |
| 4" | 102 | 124 | 150 | 10 | 4.31 | *** |
| * | Usually ex-stock | ** | 2 weeks | *** | On request | |
|
|
|
BLEDOW BLEDOW 1641
High pressure grouting/plaster hose offering good flexibility under pressure. This hose is made from conductive rubber both on the cover and liner. Specially designed for pumping plaster.
|
|
|
GOBI GOBI 2086
Heavy duty bulk material powder/slurry and delivery hose. Very tough and reliable yet still maintaining its flexibility.
|
|
|
GOBI GOBI 2700
Powder/slurry material suction/delivery hose – Also used for wet/dry cement, grains and granules.
|
|
|
MOHAVE MOHAVE 1548
Animal feed/powder hose. General 3 bar working pressure. As this hose can vary in dimension, please consult our sales office for further
information.
|
|
|
MOHAVE MOHAVE 2498
Road sweeper vehicle suction hose. A variety of styles available to suit customer requirements. Please consult our sales office for
information.
|
|
|
SAHARA SAHARA 1600
General shotblast/gritblast and grouting hose for a variety of applications. This product offers good flexibility and wear life. Pin pricked cover.
|
|
|
SAHARA SAHARA 1601
Similar to Sahara 1600 but designed for more arduous working conditions.
|
|
|
SAHARA SAHARA 1700
Material handling hose for cement and powders. Can be made to exact customer specification.
|
|
|
|
