Products
|
|
|
|
|
|
|
|
Polyurethane Ductings
-

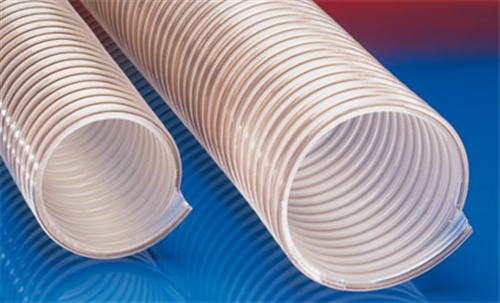

Bora 4500
|
|
|
|
|
|
Made from a premium grade polyether polyurethane and reinforced with a sprung steel wire helix.
This first class ducting hose is designed to be used in many industries. It is food safe and permanently anti-static with very good abrasion resistance. This ducting is also very resistant to hydrolysis and is microbe resistant.
An excellent choice when encountering abrasive materials and where an anti-static hose is needed.
|
|
|
Colour
|
Clear
|
|
Specification
|
Conforms to FDA 21 CFR 177.2600 and 178.2010
|
|
Remarks
|
Smooth bore for optimized flow
|
|
Application
|
A great all rounder, can be used for many varied applications
|
|
Special Features
|
Permanently anti-static to UL94-V2. ATEX 2014/34/EU
Conforms to German Wood Trade Association DIN26057 Type 2
|
|
Temperature
|
-40°C to +90°C. [Intermittent to +125ºC]
|
| Inch | mm | M | mm | Kg/metre | Bar | Bar |
| ID | ID | Coil Sizes | Bend radius | Weight | Pressure | Vacuum |
| 2" | 51 | 10 | 63.0 | 0.40 | 1.13 | 0.34 |
| 2 1/2" | 63 | 10 | 79.0 | 0.52 | 0.85 | 0.24 |
| 3" | 76 | 10 | 90.0 | 0.59 | 0.76 | 0.19 |
| | 80 | 10 | 98.0 | 0.65 | 0.70 | 0.17 |
| 3 1/2" | 90 | 10 | 107.0 | 0.72 | 0.64 | 0.15 |
| 4" | 102 | 10 | 118.0 | 0.80 | 0.57 | 0.12 |
| 4 1/2" | 114 | 10 | 134.0 | 0.90 | 0.50 | 0.10 |
| | 120 | 10 | 140.0 | 0.95 | 0.47 | 0.095 |
| 5" | 127 | 10 | 145.0 | 0.98 | 0.46 | 0.08 |
| 5 1/2" | 140 | 10 | 162.0 | 1.09 | 0.41 | 0.08 |
| 6" | 152 | 10 | 173.0 | 1.40 | 0.38 | 0.075 |
| | 160 | 10 | 184.0 | 1.50 | 0.38 | 0.065 |
| 7" | 178 | 10 | 206.0 | 1.67 | 0.32 | 0.05 |
| 8" | 203 | 10 | 228.0 | 1.86 | 0.29 | 0.05 |
| 9" | 229 | 10 | 255.0 | 2.08 | 0.26 | 0.04 |
| 10" | 254 | 10 | 283.0 | 2.31 | 0.23 | 0.02 |
| 12" | 305 | 10 | 338.0 | 2.77 | 0.19 | 0.02 |
| Available up to 20" bore | | | | | | |
|
|
|
BORA BORA 4000
Medium duty polyester/polyurethane hose supported by a single, fully encapsulated blue or plain wire helix. This hose is designed for the transfer of small abrasive particles such as grit, powders, wood chip and other such abrasive materials.
|
|
|
BORA BORA 8000
Super heavyweight abrasion resistant polyurethane ducting hose giving superb performance for transferring granules, particles, etc. Especially suited
for arduous use in agriculture and vehicle blowers discharge. Difficult to pierce or snag.
|
|
|
BORA BORA 8500
Made from a heavy wall polyurethane over a semi-sprung wire helix, this hose is used in heavy and abrasive conditions, Designed for coarse grit and wood chip and other very abrasive materials.
|
|
|
BORA BORA 8600
Tough yet lightweight PU ducting hose with a very smooth bore and good flexibility. This hose offers good crush resistance and is ideal for the conveyance of abrasive materials.
|
|
|
BORA BORA 8610
Heavier duty version of 8600, this is a very heavy polyurethane ducting hose with a smooth bore. Designed for transporting powders and granules and also for liquid foodstuffs. Very abrasion resistant. Widely used in grain and seed drills, street cleaning and leaf collecting.
|
|
|
BORA BORA 8750
A new type of ducting hose specially designed for vacuuming leaves, twigs, pine needles and similar debris. This hose will not be attacked by the microbes found in leaf litter unlike other PU hoses. Not affected by hydrolysis.
|
|
|
KHAMSIN Bora 4500
Made from a premium grade polyether polyurethane and reinforced with a sprung steel wire helix.
This first class ducting hose is designed to be used in many industries. It is food safe and permanently anti-static with very good abrasion resistance. This ducting is also very resistant to hydrolysis and is microbe resistant.
An excellent choice when encountering abrasive materials and where an anti-static hose is needed.
|
|
|
|
