Thermoplastic Ductings
-

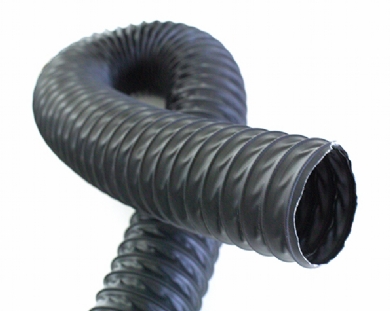

BERG DUCTING HOSE 6500
|
|
|
|
|
|
Durable and very flexible thermoplastic elastomer hose with a high degree of flexibility. Good resistance to oils, greases and solvents. Standard wall thickness is 0.4mm. Double ply construction.
|
|
|
Colour
|
Black
|
|
Reinforcement
|
Sprung steel helix
|
|
Specification
|
Also available up to 508mm bore diameter
|
|
Remarks
|
Intermittant use -40C + 150C
|
|
Application
|
Used in automotive engine air intakes and general dust and fume extraction. Automotive heating and ventilation. Suited to cooling vehicle brake linings.
|
|
Special Features
|
Also available with moulded cuffs for improved
presentation and clip integrity.
|
|
Temperature
|
-20°C to +130°C.
|
| ID | ID | Coil Sizes | Pressure | Working Vacuum | Bend Radius | Weight |
| Inch | mm | M | kPa | mm Hg | mm | g/m |
| 2" | 51 | 10 | 40 | 150 | 35 | 225 |
| | 60 | 10 | 40 | 120 | 45 | 265 |
| | 70 | 10 | 35 | 105 | 35 | 315 |
| 3" | 76 | 10 | 30 | 75 | 55 | 335 |
| | 80 | 10 | 28 | 75 | 60 | 355 |
| | 90 | 10 | 28 | 75 | 60 | 360 |
| 4" | 102 | 10 | 20 | 70 | 68 | 415 |
| | 120 | 10 | 20 | 60 | 85 | 490 |
| 5" | 127 | 10 | 20 | 60 | 90 | 515 |
| | 140 | 10 | 15 | 45 | 95 | 570 |
| 6" | 152 | 10 | 10 | 45 | 105 | 615 |
| | 175 | 10 | 9 | 37 | 125 | 730 |
| 8" | 203 | 10 | 8 | 37 | 140 | 925 |
|
|
|
BERG DUCTING HOSE BERG DUCTING HOSE 6003
Hose primarily designed for use in garage workshops for the extraction of exhaust fumes. Can be used on the floor as this hose is crush recoverable. Has an external abrasion resistant wearstrip.
|
|
|
BERG DUCTING HOSE BERG DUCTING HOSE 6500
Durable and very flexible thermoplastic elastomer hose with a high degree of flexibility. Good resistance to oils, greases and solvents. Standard wall thickness is 0.4mm. Double ply construction.
|
|
|
FOHN FOHN 700
Robust, vacuum lifting hose with resistance to oils, greases, solvents and industrial chemicals.
|
|
|
|
