    PVC Ductings - BERG DUCTING HOSE 6450

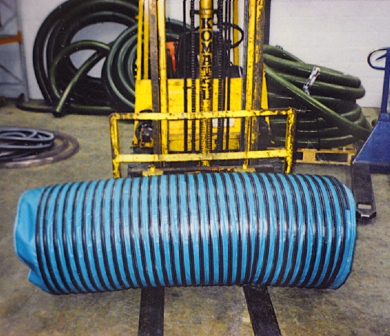

Range of large to very large bore ducting hoses. Diameters are produced up to 1200mm bore with different wire pitch distances.

Click to enlarge - Range of large to very large bore ducting hoses. Diameters are produced up to 1200mm bore with different wire pitch distances.


Click to enlarge - Range of large to very large bore ducting hoses. Diameters are produced up to 1200mm bore with different wire pitch distances. Click to enlarge - Range of large to very large bore ducting hoses. Diameters are produced up to 1200mm bore with different wire pitch distances.
Colour Various colours
Cover PVC
Lining PVC
Reinforcement Sprung wire helix
Application Air ducting with particles. Used where very large volumes of air are required. Can be used as a waste shute for non abrasive materials.
Special Features Many variations available
Temperature -20°C to +95°C.

IDIDCoil SizesWPWorking VacuumAvailability
InchmmMpsimm water[See bottom]
4"1027.6195735
5"1277.6195735
6"1527.6195700
7"1787.6155700
8"2037.6155670
9"2297.6145610
10"2547.6145580
12"3057.6125550
14"3567.6125490
16"4067.6115370
18"4577.6115310
20"5087.695130
24"6007.684800
30"7607.684320
 9007.673720
 10007.653000
 12007.652340
All hoses are 7 days from order

Back to previous page Enquire about this product
