    Thermoplastic / PVC / PTFE Hose - MISTRAL PVC HOSE 9000

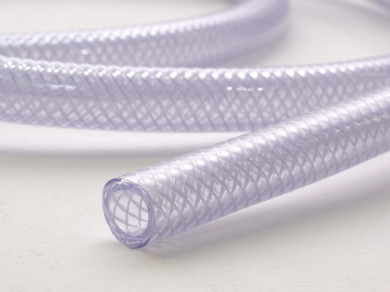

Clear braided PVC hose reinforced with a polyester fibre. Safety ratio 3:1. Can also be supplied in compound that meets the requirement of S.I. 1927. Braid angle is laid down at 54° - 44’, providing optimum performance.

Click to enlarge - Clear braided PVC hose reinforced with a polyester fibre. Safety ratio 3:1. Can also be supplied in compound that meets the requirement of S.I. 1927. Braid angle is laid down at 54° - 44’, providing optimum performance.


Click to enlarge - Clear braided PVC hose reinforced with a polyester fibre. Safety ratio 3:1. Can also be supplied in compound that meets the requirement of S.I. 1927. Braid angle is laid down at 54° - 44’, providing optimum performance. Click to enlarge - Clear braided PVC hose reinforced with a polyester fibre. Safety ratio 3:1. Can also be supplied in compound that meets the requirement of S.I. 1927. Braid angle is laid down at 54° - 44’, providing optimum performance.
Cover PVC
Lining PVC
Reinforcement Polyester braids
Specification Fully complies to BS EN ISO 6224 : 1997 and ISO 5774.
Remarks Up to 100 metres upon request.
Silicone, cadmium and phenol free hose.
Hose is manufactured from FDA and BGA
approved materials.
Application Transfer of many liquids and gases for pressure.
Fuel lines, crop spraying, compressed air and many other industrial applications.
Special Features Pressure ratings are at ambient temperature
Temperature -15°C to +65°C.

IDIDODWPCoil SizesColour
InchmmmmbarM
1/8"3102530C,B
5/32"4112530C
3/16"5-2530C,B,R
1/4"611.52530C,B,R,BL
5/16"813.52030C,B,R,BL
3/8"10162030C,B,R,BL
1/2"1318.51730C,B,R,BL
5/8"16231530C,B
3/4"19261030C,B
7/8"2229930C
1"2533730C,B
1 1/4"3242530C
1 1/2"3848330C
2"5062330C

Back to previous page Enquire about this product
