US & EUROPEAN AIR COUPLINGS
|
|
|
|
|
|

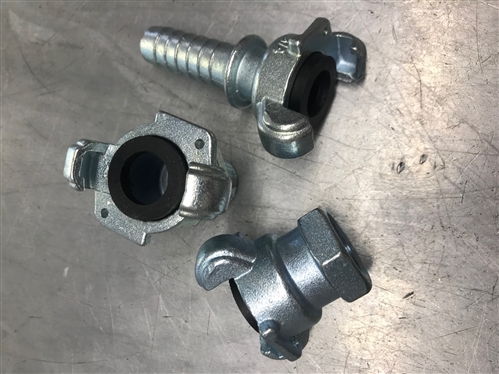

US type singlelock quick coupling. These couplings should be used with a 'R' type locking pin for safety. All threads are NPT. Available in mild steel or stainless steel. Coupling heads have holes drilled to accept a safety clip. Standard claw distance is 42mm.
|
|
|
Notes
|
# Standard working pressure in 175 psi.
# Material is malleable iron or stainless steel.
# Please note we recommend the use of a whipcheck device for all coupling air application.
# Also known as ‘Air King, Chicago and Lindy couplings’.
Interchangeable with CPT.
|
| SIZE | HOSE TAIL | FEMALE | MALE | BLANK | SEAL |
| INCH | | THREAD | THREAD | 300-Q4 | |
| 3/8" - 06 | 300N-Q1- 06 | 300N-Q2- 06 | 300N-Q3- 06 | 300N-Q4- 12 | 300N-Q5- 12 |
| 1/2" - 08 | 300N-Q1- 08 | 300N-Q2- 08 | 300N-Q3- 08 | 300N-Q4- 12 | 300N-Q5- 12 |
| 3/4" - 12 | 300N-Q1- 12 | 300N-Q2- 12 | 300N-Q3- 12 | 300N-Q4- 12 | 300N-Q5- 12 |
| 1" - 16 | 300N-Q1- 16 | 300N-Q2- 16 | 300N-Q3- 16 | 300N-Q4- 12 | 300N-Q5- 12 |
| -40ºC +95ºC | | | | | |
|
|
|
UK COMPRESSOR COUPLING STANDARD UK COMPRESSOR COUPLING
This is the UK standard quick coupling for mobile compressors. The coupling features a double lock system and gives a trouble free operation. Finished in a clear zinc plate, these couplings are a simple but very effective method of coupling compressed air hoses.
|
|
|
US & EUROPEAN AIR COUPLINGS US & EUROPEAN AIR COUPLINGS
US type singlelock quick coupling. These couplings should be used with a 'R' type locking pin for safety. All threads are NPT. Available in mild steel or stainless steel. Coupling heads have holes drilled to accept a safety clip. Standard claw distance is 42mm.
|
|
|
|
|
|
|
|
|
