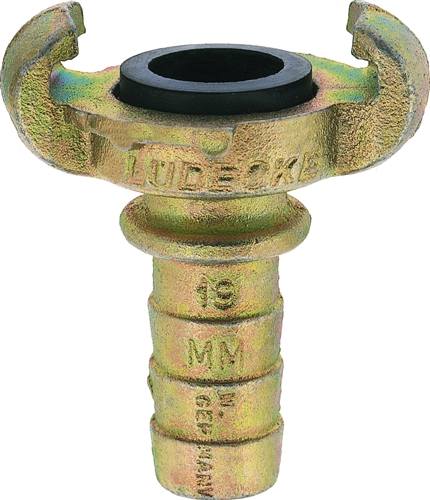

STANDARD UK COMPRESSOR COUPLING
|
|
|
|
|
|
This is the UK standard quick coupling for mobile compressors. The coupling features a double lock system and gives a trouble free operation. Finished in a clear zinc plate, these couplings are a simple but very effective method of coupling compressed air hoses.
|
|
|
Notes
|
# Blanking cap and seal fit all sizes.
# Made from malleable iron and has a distance of 42mm between the lugs.
# Nitrile seals available.
# We recommend the use of a whipcheck device for all compressed air applications.
# Available with locking holes for safety pins.
# To DIN 3489
|
| SIZE | Hose Tail | Female thread | Male thread | Pressure |
| Inch | | | | Bar |
| 1/4" - 02 | 300Q1- 02 | 300Q2- 02 | 300Q3- 02 | 10 |
| 3/8" - 03 | 300Q1- 03 | 300Q2- 03 | 300Q3- 03 | 10 |
| 1/2" - 05 | 300Q1- 05 | 300Q2- 05 | 300Q3- 05 | 10 |
| 3/4" - 07 | 300Q1- 07 | 300Q2- 07 | 300Q3- 07 | 10 |
| 1" - 10 | 300Q1- 10 | 300Q2- 10 | 300Q3- 10 | 10 |
| 1 1/4" - 12 | 300Q1- 12 | 300Q2- 12 | 300Q3- 12 | 10 |
|
|
|
UK COMPRESSOR COUPLING STANDARD UK COMPRESSOR COUPLING
This is the UK standard quick coupling for mobile compressors. The coupling features a double lock system and gives a trouble free operation. Finished in a clear zinc plate, these couplings are a simple but very effective method of coupling compressed air hoses.
|
|
|
US & EUROPEAN AIR COUPLINGS US & EUROPEAN AIR COUPLINGS
US type singlelock quick coupling. These couplings should be used with a 'R' type locking pin for safety. All threads are NPT. Available in mild steel or stainless steel. Coupling heads have holes drilled to accept a safety clip. Standard claw distance is 42mm.
|
|
|
|
|
|
|
|
|
