Designation Ltd - 46 years and still going strong! - Steam & Boss Type Hose Fittings - Steam Hose Couplings To DIN EN 14 423 - Solid and robust steam hose fittings. Available in steel, brass and stainless steel. Clamps are made from forged brass. Female threaded nuts are retained by use of thrust wires.

Solid and robust steam hose fittings. Available in steel, brass and stainless steel. Clamps are made from forged brass. Female threaded nuts are retained by use of thrust wires.

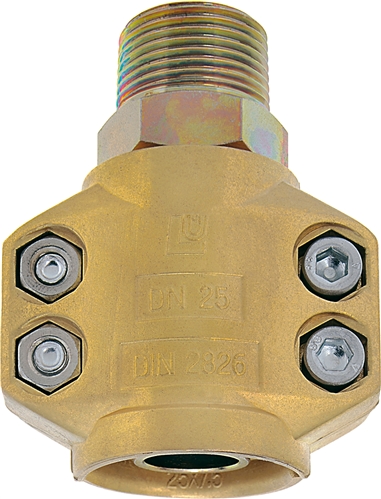

Click to enlarge - Solid and robust steam hose fittings. Available in steel, brass and stainless steel. Clamps are made from forged brass. Female threaded nuts are retained by use of thrust wires.

Seal material	Seal is made from Frenzelit Novatec special polymer.
Temperature	Saturated steam to +210ºC and hot water to +120ºC at maximum 18 bars pressure
Materials	Made from zinc plated mild steel, stainless steel to 1.4305 and brass to MS58

Male thread	Female thread	Clamp type
1/2" BSPT	1/2" BSPP	KSM12D
3/4" BSPT	3/4" BSPP	KSM34D
1" BSPT	1" BSPP	KSM10D
1 1/2" BSPT	1 1/2" BSPP	KSM15D
2" BSPT	2" BSPP	KSM20D


Back to previous page	Enquire about this product
