Water Hose
-

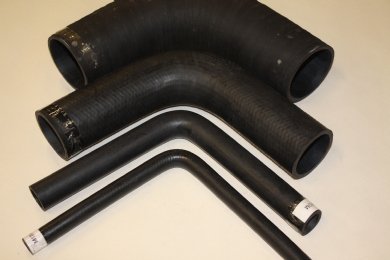

COLORADO RADIATOR HOSE 1054
|
|
|
|
|
|
A range of water cooling hoses in 90 and 135 degree bends. Designed for use at 2 bars pressure. Suitable for use in automotive, marine and industrial applications.
|
|
|
Colour
|
Black
|
|
Cover
|
Black EPDM
|
|
Lining
|
Black EPDM
|
|
Reinforcement
|
Textile polyester braids
|
|
Specification
|
Resistant to most anti-freeze solutions and corrosive inhibitors
|
|
Application
|
For use with glycols in coolant etc.
|
|
Special Features
|
Extra long 8" centre line leg length
|
|
Temperature
|
-40C + 100C
|
| Bore Size | | Working pressure | Leg length | 90 Degree | 135 Degree |
| Inch | mm | Bars | Centre | Type 1054 | Type 1055 |
| | | | | | |
| 3/8" | 10 | 2 | 8" | Yes | Yes |
| 1/2" | 13 | 2 | 8" | Yes | Yes |
| 5/8" | 16 | 2 | 8" | Yes | Yes |
| 3/4" | 20 | 2 | 8" | Yes | Yes |
| 7/8" | 22 | 2 | 8" | Yes | Yes |
| 1" | 25 | 2 | 8" | Yes | Yes |
| 1 1/8" | 28 | 2 | 8" | Yes | Yes |
| 1 1/4" | 32 | 2 | 8" | Yes | Yes |
| 1 3/8" | 35 | 2 | 8" | Yes | Yes |
| 1 1/2" | 38 | 2 | 8" | Yes | Yes |
| 1 5/8" | 41 | 2 | 8" | Yes | Yes |
| 1 3/4" | 45 | 2 | 8" | Yes | Yes |
| 1 7/8" | 48 | 2 | 8" | Yes | Yes |
| 2" | 51 | 2 | 8" | Yes | Yes |
| 2 1/8" | 54 | 2 | 8" | Yes | Yes |
| 2 1/4" | 57 | 2 | 8" | Yes | Yes |
| 2 3/8" | 60 | 2 | 8" | Yes | Yes |
| 2 1/2" | 63 | 2 | 8" | Yes | Yes |
| 2 3/4" | 70 | 2 | 8" | Yes | Yes |
| 3" | 76 | 2" | 8" | Yes | Yes |
|
|
|
ATLANTIC ATLANTIC 2001
Heavy duty water suction/delivery hose. Also suitable for slurries and powders and mild chemicals/fertilisers. Flexible and tough for vacuum pumps and used in all water suction applications. Multiple wire helix and textile reinforced.
|
|
|
ATLANTIC ATLANTIC 2105
Atlantic 2105 is a very heavy duty hose designed for use in mines and quarries. This hose has a special EPDM liner
that is designed for slurries and abrasives at high temperatures. The hose range has a constant working pressure through all sizes.
Very robust and end are normally either swaged or stainless banded.
|
|
|
ATLANTIC ATLANTIC 2150
Heavy duty constant pressure water suction/delivery hose. Tough as old boots, this hose will give many years of trouble free service life.
|
|
|
|
|
|
|
COLORADO RADIATOR HOSE COLORADO RADIATOR HOSE 1500
Highly flexible hose used in water cooling systems. This hose does away with the need to fit special factory produced items as it comes in a range of non-standard bore sizes. Corrugated cover but has a smooth bore for improved flow.
|
|
|
COLORADO RADIATOR HOSE COLORADO RADIATOR HOSE 4801
Vehicle heater hose. This product is used on all under bonnet radiator cooling systems. Flexible and made by a world leader in this application, Colorado 4801 is designed to give many good years of service life. This hose is ozone, heat and abrasion resistant and will resist hot oil spray.
|
|
|
PACIFIC PACIFIC 1005
Medium to heavy weight rubber layflat type water hose for general low to medium pressure water pumping duty. Can also be used for pumping dilute chemicals. Can be used with swaged or re-useable end fittings.
|
|
|
PACIFIC PACIFIC 1022
Extra heavy duty water delivery hose for arduous use. Thicker wall than 2001 and made with higher tensile textile cords.
|
|
|
|
