PVC Suction/Discharge Hose
-

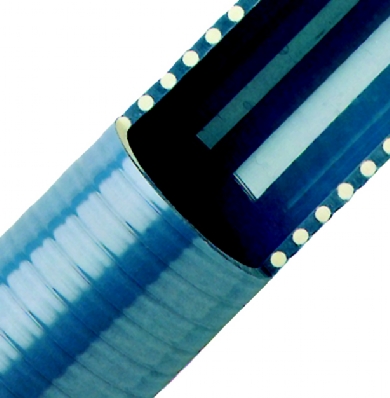

AMAZON SUCTION HOSE 9515
|
|
|
|
|
|
Oil suction/delivery hose made from a highly flexible PVC with excellent flexibility at low temperatures. Smooth bore, reinforced by a PVC helix. Resistant to a wide range of chemicals.
|
|
|
Colour
|
Blue.
|
|
Specification
|
Fully complies to BS EN 23994
(Replaces BS 5780 : 1979)
|
|
Remarks
|
Delivery type 9516.
Anti-static type 9517.
Can be supplied in straight lengths.
Vacuum rating 90%.
|
|
Application
|
Suction/delivery of fuel, oils, non aromatic solvents and chemicals.
|
|
Temperature
|
-15°C to +60°C.
|
| ID | ID | Wall | WP | Coil Sizes | Bend Radius | Weight/M | Availability |
| Inch | mm | mm | psi | mt | mm | Gr/mt | |
| 1" | 25 | 4.0 | 112 | 30 | 100 | 480 | * |
| 1 1/4" | 32 | 4.0 | 100 | 30 | 130 | 580 | * |
| 1 1/2" | 38 | 4.5 | 90 | 30 | 150 | 680 | * |
| 1 3/4" | 45 | 4.5 | 85 | 30 | 175 | 800 | ** |
| 2" | 51 | 4.5 | 80 | 30 | 200 | 1020 | * |
| 2 1/2" | 63 | 5.0 | 75 | 30 | 230 | 1360 | ** |
| 3" | 76 | 6.0 | 70 | 30 | 280 | 1700 | * |
| 3 1/2" | 90 | 6.0 | 58 | 30 | 320 | 2080 | ** |
| 4" | 102 | 6.5 | 50 | 30 | 350 | 2620 | * |
| 5" | 127 | 7.1 | 45 | 30 | 510 | 3600 | * |
| 6" | 152 | 7.1 | 40 | 30 | 610 | 5000 | * |
| 8" | 203 | 12.1 | 25 | 10 | 850 | 10000 | *** |
| 10" | 254 | 13.1 | 17 | 10 | 1500 | 14000 | *** |
| * | Usually ex-stock | ** | 2 weeks | *** | 6 weeks | | |
|
|
|
