PVC Suction/Discharge Hose
-

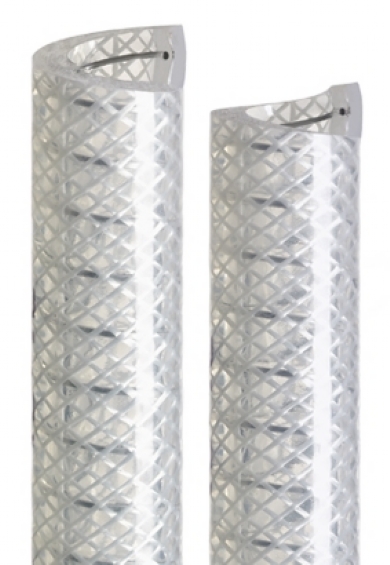

DANUBE 9650
|
|
|
|
|
|
This hose, although designed for the pharmaceutical industry, has many applications. Designed for the suction and delivery of abrasive foodstuffs, the hose is hard wearing, flexible and has high operating temperatures.
|
|
|
Colour
|
Clear
|
|
Cover
|
Clear poly ether based polyurethane
|
|
Lining
|
polyurethane
|
|
Reinforcement
|
Stainless steel wire and textile braid.
|
|
Specification
|
To USP Class VI Norm
|
|
Application
|
Pharmaceutical, food processing, transfer of wines and spirits.
|
|
Special Features
|
Intermittently to +135C
|
|
Temperature
|
-40C + 90C
|
| Bore Size | Outside | Working Pressure | Bend Radius | Coils | Vacuum | Weight |
| mm | mm | Bar | mm | Metres | mH20 | gms/metre |
| 13 | 23.50 | 19 | 65 | 60 | 10 | 365 |
| 19 | 32.00 | 19 | 100 | 60 | 10 | 585 |
| 25 | 37.50 | 12 | 125 | 60 | 10 | 745 |
| 32 | 44.00 | 11 | 160 | 60 | 9 | 880 |
| 38 | 51.00 | 10 | 190 | 30 | 9 | 1105 |
| 51 | 65.00 | 10 | 250 | 30 | 9 | 1695 |
|
|
|
AMAZON SUCTION HOSE AMAZON SUCTION HOSE 9500
Heavy duty, thick wall, flexible PVC suction/discharge hose reinforced with a rigid PVC spiral. A 'proper' hose for a tough job, this hose keeps working when the 'medium' duty hoses have given up. Particularly suitable for irrigation pumps.
|
|
|
|
|
|
AMAZON SUCTION HOSE AMAZON SUCTION HOSE 9515
Oil suction/delivery hose made from a highly flexible PVC with excellent flexibility at low temperatures. Smooth bore, reinforced by a PVC helix. Resistant to a wide range of chemicals.
|
|
|
DANUBE DANUBE 9600
Heavy duty, non-toxic clear PVC, UV compounded to maintain clarity. Fully encapsulated wire helix reinforcement. This tough hose offers many advantages over other PVC suction hoses in particular, to monitor product flow or blockages.
|
|
|
DANUBE DANUBE 9650
This hose, although designed for the pharmaceutical industry, has many applications. Designed for the suction and delivery of abrasive foodstuffs, the hose is hard wearing, flexible and has high operating temperatures.
|
|
|
EBRO EBRO 9680
Grey PVC heavy duty fire brigade suction/discharge hose. Smooth bore. PVC helix fully encapsulated giving good adhesion to the wall.
|
|
|
EDER EDER 9550
Lightweight PVC suction/discharge hose made from a non-toxic compound. Reinforced with a spiral helix and designed for the transfer of foodstuffs.
|
|
|
EDER EDER 9552
Special food quality hose designed to retain integrity at higher temperatures. Can be steam cleaned.
|
|
|
EDER EDER 9660
A food quality hose designed for light duty applications. Smooth bore and with a slightly convoluted cover, this hose is tough and flexible. All materials used are approved for use with food products.
|
|
|
EDER EDER 9700
Delivery and light suction hose for use in sewage systems on boats. Made from TPE materials which is a material which has low permeation of odours and high UV resistance. This sanitation hose offers good flexibility and bend radius.
|
|
|
RHINE RHINE 9520
Smooth bore light weight PVC hose offering superb flexibility and handling, reinforced with a spiral helix. Used for low pressure water transport, air ducting and transfer of light slurries.
|
|
|
RHINE RHINE 9522
Similar in construction to 9520, but compound is made in accordance to UL94Vo to offer resistance to naked flames. Will not ignite if removed from flame.
|
|
|
RHINE RHINE 9530
Lightweight PVC hose reinforced with a PVC spiral helix, smooth bore. Can also be used for light suction duty.
|
|
|
|
