Stainless PTFE Hose
-
VENUS 4100
|
|
|
|
|
|

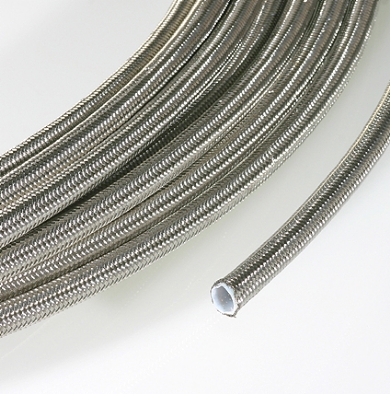

Extruded smooth bore PTFE hose reinforced by a stainless steel overbraid. Designed for use with most industrial gases, chemicals, adhesives, steam, etc. Offers good flexibility and high working temperatures.
|
|
|
Colour
|
Natural stainless finish.
|
|
Cover
|
Stainless T304 braid.
|
|
Lining
|
Seamless PTFE.
|
|
Reinforcement
|
Stainless Type 304 braid.
|
|
Specification
|
Fully complies to SAE 100R14.
|
|
Remarks
|
Normally used with swaged fittings.
Available in heavy wall.
Can be carbon impregnated.
|
|
Application
|
High and low pressure steam, chemicals, paints,inks,adhesives, fuels and oils, detergents, refrigerants and foodstuffs.
|
|
Special Features
|
Anti-static version available for fluids such as solvents, refrigerants or fuels as these fluids have a high electrical resistance. An additive is incorporated to the liner allowing safe static discharging.
|
|
Temperature
|
-70°C to +260°C.
|
| ID | ID | OD | Wall [PTFE] | Burst Pressure | WP | WP | Bend Radius | Weight |
| Inch | mm | mm | mm | Bar | psi | bar | mm | Kg |
| | | | | | | | | |
| 1/8" | 3.2 | 6.2 | 1.0 | 960 | 4200 | 280 | 40 | 0.065 |
| 3/16" | 5.0 | 8.0 | 0.7 | 820 | 3510 | 234 | 45 | 0.080 |
| 1/4" | 6.5 | 9.5 | 0.7 | 820 | 3510 | 234 | 80 | 0.093 |
| 5/16" | 8.2 | 11.4 | 0.8 | 690 | 3000 | 200 | 115 | 0.110 |
| 3/8" | 10.0 | 13.2 | 0.8 | 550 | 2400 | 160 | 120 | 0.124 |
| 1/2" | 13.4 | 16.6 | 0.8 | 480 | 2100 | 140 | 150 | 0.207 |
| 5/8" | 16.4 | 19.9 | 1.0 | 410 | 1755 | 117 | 160 | 0.255 |
| 3/4" | 19.6 | 23.2 | 1.0 | 270 | 1200 | 80 | 165 | 0.315 |
| 1" | 26.0 | 30.0 | 1.2 | 270 | 1050 | 70 | 250 | 0.430 |
|
|
|
