Designation Ltd - 46 years and still going strong! - Stainless PTFE Hose - SATURN 4500 - Convoluted PTFE overbraided hose offering superb flexibility and a very wide resistance to many chemicals, gases, fluids, etc. This new design offers all the advantages of a smooth bore with the flexibility of a convoluted hose.

Convoluted PTFE overbraided hose offering superb flexibility and a very wide resistance to many chemicals, gases, fluids, etc. This new design offers all the advantages of a smooth bore with the flexibility of a convoluted hose.

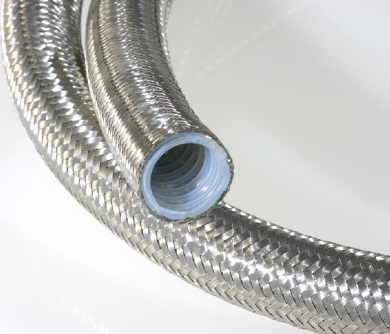

Click to enlarge - Convoluted PTFE overbraided hose offering superb flexibility and a very wide resistance to many chemicals, gases, fluids, etc. This new design offers all the advantages of a smooth bore with the flexibility of a convoluted hose.

Colour	Natural stainless finish.
Cover	Stainless Type 304 braid.
Lining	Extra flexible convoluted virgin PTFE tube.
Reinforcement	Stainless Type 304 braid.
Specification	Fully complies to SAE 100R14. Materials used conform to FDA 21 CFR 177.15550 Anti-static version complies with BS2050 and FDA 21 CFR 178.3297. 3-A Sanitary requirements fully met. Tested and approved to SAE J1737
Remarks	Liner can be reinforced with a PTFE impregnated glass fibre. Working pressures are based on a maximum temperature of 130C. Please consult office if operating beyond this range.
Special Features	Also available in anti-static version for the conveyance of dry gases, fuels, solvents etc. where safe electrical discharge is important.
Temperature	-70°C to +230°C.

ID	ID	OD	WP	WP	Bend Radius	Weight
Inch	mm	mm	psi	bar	mm	Kgs/metre
1/4"	6	9.6	1280	88	19	0.092
3/8"	10	13.5	1160	80	25	0.160
1/2"	13	17.50	870	60	38	0.225
5/8"	16	21.1	750	50	50	0.336
3/4"	19	24.2	600	40	63	0.383
1"	25	31.7	580	40	75	0.540
1 1/4"	32	38.8	390	27	82	0.820
1 1/2"	38	44.1	335	23	100	1.500
2"	51	55.6	290	20	140	2.100
3"	76	85.7	205	14	230	3.290
4"	102	108.7	145	10	300	5.05
