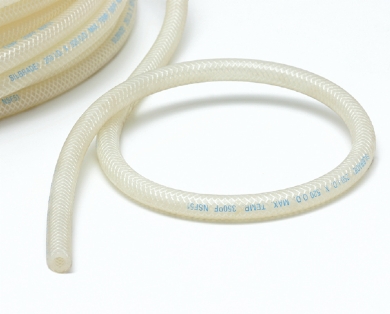

    Silicone Hose - SILICONE HOSE 7000

Clear braided silicone hose designed to work at opposite ends of the temperature scale. Fully autoclaveable and shows excellent property stability.

Click to enlarge - Clear braided silicone hose designed to work at opposite ends of the temperature scale. Fully autoclaveable and shows excellent property stability.


Click to enlarge - Clear braided silicone hose designed to work at opposite ends of the temperature scale. Fully autoclaveable and shows excellent property stability.
Colour Clear/semi opaque
Cover Silicone
Lining Silicone
Reinforcement High temperature polyester braids
Specification To NSF 51
Remarks 15 and 30 metre standard coils
Application For high and low temperature applications.
Temperature -26C to + 175C

Bore size Outside DiameterWorking PressureBend Radius
InchmmInchPsimm

1/8"3.00.36517575
3/16"4.80.45017590
1/4"6.30.520160105
5/16"8.00.590140120
3/8"9.50.660125135
1/2"12.70.800105160
5/8"15.90.97090190
3/4"19.11.10070220
1"25.41.36060260

Back to previous page Enquire about this product
