Silicone Hose
-

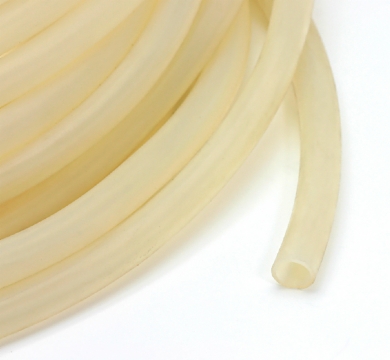

SILICONE HOSE 7010
|
|
|
|
|
|
Clear, unreinforced tubing useful for many applications. Having low/high working temperature extremes, this tube is used in laboratories, analytical machines, peristaltic pumps and in general engineering.
|
|
|
Colour
|
Clear/Opaque
|
|
Cover
|
Silicone
|
|
Lining
|
Silicone
|
|
Reinforcement
|
Unreinforced
|
|
Remarks
|
Not designed as a pressure hose
|
|
Special Features
|
Can be supplied with extra catalyst to prevent inner hose wall from 'sticking'
|
|
Temperature
|
-37C to + 260C
|
| Bore size | | Outside Diameter | | Bend radius | Grade |
| Inch | mm | Inch | mm | mm | |
| | | | | | |
| 1/16" | 1.6 | 1/8" | 3.2 | 25.6 | Light |
| 1/16" | 1.6 | 3/16" | 4.8 | 38.4 | Light |
| 3/32" | 2.4 | 5/32" | 4.0 | 32.0 | Light |
| 3/32" | 2.4 | 7/32" | 5.6 | 44.8 | Light |
| 1/8" | 3.2 | 3/16" | 4.8 | 38.4 | Light |
| 1/8" | 3.2 | 1/4" | 6.3 | 51.2 | Light |
| 1/8" | 3.2 | 5/16" | 8.0 | 64.0 | Medium |
| 1/8" | 3.2 | 3/8" | 9.5 | 76.0 | Medium |
| 5/32" | 4.0 | 9/32" | 7.1 | 56.8 | Light |
| 5/32" | 4.0 | 11/32" | 8.7 | 70.0 | Medium |
| 3/16" | 4.8 | 1/4" | 6.3 | 50.4 | Light |
| 3/16" | 4.8 | 5/16" | 8.0 | 64.0 | Light |
| 3/16" | 4.8 | 3/8" | 9.5 | 76.0 | Medium |
| 3/16" | 4.8 | 7/16" | 11.1 | 88.0 | Medium |
| 1/4" | 6.3 | 5/16" | 8.0 | 64.0 | Light |
| 1/4" | 6.3 | 3/8" | 9.5 | 76.0 | Light |
| 1/4" | 6.3 | 7/16" | 11.1 | 88.0 | Medium |
| 1/4" | 6.3 | 1/2" | 12.7 | 102 | Medium |
| 5/16" | 8.0 | 7/16" | 11.1 | 88.0 | Light |
| 5/16" | 8.0 | 1/2" | 12.7 | 102 | Medium |
| 3/8" | 9.5 | 1/2" | 12.7 | 102 | Light |
| 3/8" | 9.5 | 9/16" | 14.8 | 120 | Medium |
| 3/8" | 9.5 | 5/8" | 15.9 | 130 | Medium |
| 3/8" | 9.5 | 3/4" | 19.1 | 152 | Heavy |
| 7/16" | 11.1 | 5/8" | 15.9 | 127 | Medium |
| 1/2" | 12.7 | 5/8" | 15.9 | 127 | Light |
| 1/2" | 12.7 | 11/16" | 17.5 | 140 | Medium |
| 1/2" | 12.7 | 3/4" | 19.1 | 152 | Medium |
| 1/2" | 12.7 | 7/8" | 22.2 | 200 | Heavy |
| 5/8" | 15.9 | 3/4" | 19.1 | 152 | Light |
| 5/8" | 15.9 | 13/16" | 20.6 | 165 | Medium |
| 5/8" | 15.9 | 7/8" | 22.2 | 177 | Medium |
| 5/8" | 15.9 | 1" | 25.4 | 203 | Heavy |
| 3/4" | 19.1 | 1" | 25.4 | 203 | Medium |
| 3/4" | 19.1 | 1 1/8" | 28.6 | 229 | Heavy |
|
|
|
SILICONE HOSE SILICONE HOSE 1125
Highly flexible silicone hose with a polyester reinforcement designed for heating and cooling equipment. This hose a smooth cover and very smooth liner making it easy to cut and fit.
|
|
|
SILICONE HOSE SILICONE HOSE 7000
Clear braided silicone hose designed to work at opposite ends of the temperature scale. Fully autoclaveable and shows excellent property stability.
|
|
|
SILICONE HOSE SILICONE HOSE 7010
Clear, unreinforced tubing useful for many applications. Having low/high working temperature extremes, this tube is used in laboratories, analytical machines, peristaltic pumps and in general engineering.
|
|
|
SILICONE HOSE SILICONE HOSE Elbows
Standard 90 degree elbows are stocked with 6" leg lengths. Longer lengths are available to order. Being the versatile material it is, silicone elbows are used in many industries where high temperature and a hostile environment may be encountered.
|
|
|
SILICONE HOSE SILICONE HOSE STRAIGHT
Automotive engine, heater and bleed water coolant hoses. Industrial delivery hoses for handling water, chemicals, air, gas or food products. Cooling and heating process machinery, product transfer and delivery.
|
|
|
|
