Oil Hose
-

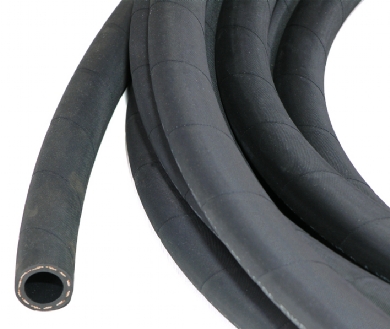

FORTIES 3512
|
|
|
|
|
|
Medium pressure hose for hydraulic service lines. Used also for general oil delivery and compressed air.
|
|
|
Colour
|
Smooth black cover/Black liner
|
|
Cover
|
Nitrile rubber
|
|
Lining
|
Nitrile/SBR
|
|
Reinforcement
|
Textile braids
|
|
Specification
|
Fully complies to SAE 100R6
|
|
Remarks
|
Used with push-in fittings or clips
|
|
Application
|
oil and compressed air lines.
|
|
Temperature
|
-25C +125C Intermittently 150C
|
| ID | ID | OD | WP | WP | Weight | Availability |
| Inch | mm | mm | psi | bar | Kg/m | |
| 3/16" | 5 | 11.1 | 500 | 34 | 0.16 | * |
| 1/4" | 6 | 12.7 | 400 | 28 | 0.21 | * |
| 5/16" | 8 | 14.3 | 400 | 28 | 0.24 | * |
| 3/8" | 10 | 15.9 | 400 | 28 | 0.26 | * |
| 1/2" | 13 | 19.8 | 400 | 28 | 0.34 | * |
| 5/8" | 16 | 23 | 350 | 24 | 0.40 | * |
| 3/4" | 19 | 27 | 315 | 21 | 0.60 | * |
| 1" | 25 | 35 | 300 | 20 | 0.83 | * |
| * | usually ex-stock | | | | | |
|
|
|
|
|
BRENT OIL/FUEL HOSE BRENT OIL/FUEL HOSE 2900
Constant pressure suction/delivery hose for oil/fuel applications. Popular hose covering a wide range of industrial/agricultural and workshop applications. Has a conductive liner.
|
|
|
BRENT OIL/FUEL HOSE BRENT OIL/FUEL HOSE 5604
Oil/fuel suction discharge hose with embedded helix wires. Designed for use in heavy duty applications with an aromatic content not exceeding 50%
This hose is designed to be used with swaged end fittings.
|
|
|
FORTIES FORTIES 3501
High pressure hose for hydraulic service lines. Used on hydraulic equipment and machine tools.
|
|
|
FORTIES FORTIES 3510
Grey solvent hose that resists abrasion, oils, ozone and gouging from hard, sharp surfaces. Suitable for oils, grease and solvents.
|
|
|
FORTIES FORTIES 3512
Medium pressure hose for hydraulic service lines. Used also for general oil delivery and compressed air.
|
|
|
FORTIES FORTIES 5500
Constant pressure hose for general oil and hydrocarbon delivery applications. Long length moulded construction.
|
|
|
PIPER OIL HOSE PIPER 1TE
Piper 1TE is a very versatile hose useful for many applications. Recommended for mineral, vegetable and rape seed oils. Also for glycol and polyglycol based oils. Synthetic ester based oils and oils in an aqueous emulsion.
|
|
|
PIPER OIL HOSE PIPER OIL HOSE 2TE
A very good all purpose low pressure hydraulic hose. Very flexible and highly resistant to oils, ozone and weathering. Can be used with many Biofuels. Excellent swelling resistance
|
|
|
PIPER OIL HOSE PIPER OIL HOSE 3006
Constant pressure, multi purpose oil/fuel delivery hose. This is a very flexible hose designed for use with oils, greases, paraffin and diesel . This hose can be used with unleaded and biofuels.
Also used on sprayers and for diluted chemicals. This hose has a self extinguishing outer cover.
|
|
|
PIPER OIL HOSE PIPER OIL HOSE 5400
Fuel oil hose suitable for mounting on reels. This hose is normally used on tankers for the supply of heating oil but is also used a fuel delivery hose where aromatic content does not exceed 50%.
Very pliable and hard wearing.
|
|
|
|
