Chemical, Paint and Solvent Hose
-

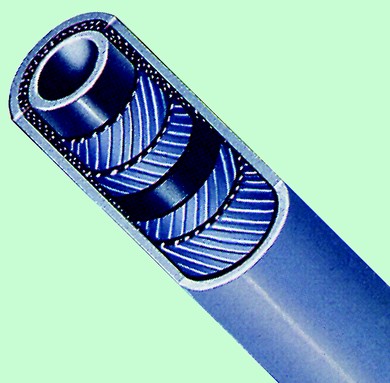

ZIRCON 3304
|
|
|
|
|
|
Universal hose used for pesticides and acetone based paints.
|
|
|
Colour
|
Grey cover/Black liner
|
|
Cover
|
EPDM
|
|
Lining
|
EPDM
|
|
Reinforcement
|
Textile yarns
|
|
Remarks
|
Anti-static lining
|
| ID | ID | OD | WP | WP | Weight | Availability |
| Inch | mm | mm | psi | bar | Kg/m | See under |
| 1/4" | 6 | 14.3 | 375 | 25 | 175 | |
| 5/16" | 8 | 15.9 | 375 | 25 | 203 | |
| 3/8" | 10 | 17.5 | 375 | 25 | 230 | |
| 1/2" | 13 | 21.5 | 375 | 25 | 322 | |
| 5/8" | 16 | 24.7 | 375 | 25 | 386 | |
| 3/4" | 19 | 29.5 | 375 | 25 | 548 | |
| 1" | 25 | 36.2 | 375 | 25 | 610 | |
| Normally 7-10 days | | | | | | |
|
|
|
DIAMOND DIAMOND 2300
XLP [Cross linked polyethylene] chemical suction/discharge hose for a wide variety of chemicals and aggressive substances. This is a flexible hose reinforced with high tensile textile cords and embedded helical wires.
|
|
|
DIAMOND DIAMOND 3100
Blue EPDM cover abrasion resistant hose with a UHMWPE liner. Resists 98% of all known chemicals and is also suitable for the transfer of foodstuffs. This hose is designed for use with aggressive media and yet offers good handling properties.
|
|
|
|
|
|
|
