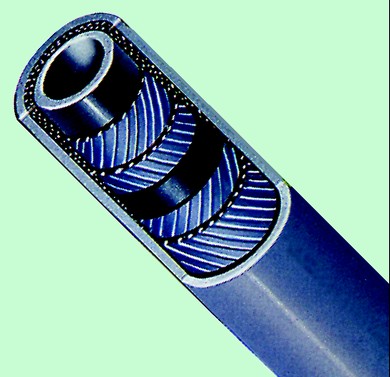

Chemical, Paint and Solvent Hose - ZIRCON 3480

Paint hose specially made for cellulose based paints.

Colour	Blue cover/White liner
Cover	NBR/PVC
Lining	Polyamide
Reinforcement	Rayon

ID	ID	OD	WP	WP	Weight	Availability
Inch	mm	mm	psi	bar	Kg/m	See under
1/4"	6	13.1	300	20	0.160
5/16"	8	15.4	300	20	0.184
3/8"	10	16.9	300	20	0.208
1/2"	12	20.1	300	20	0.260
Normally 5 days from order


Back to previous page	Enquire about this product
