Designation Ltd - 45 years and still going strong! - Silicone Ductings - SHAMAL 3001 - Lightweight ducting hose constructed from a wire helix and covered with a single layer of silicone coated glass fabric. Reinforced with a single fibre glass retention cord.

Lightweight ducting hose constructed from a wire helix and covered with a single layer of silicone coated glass fabric. Reinforced with a single fibre glass retention cord.

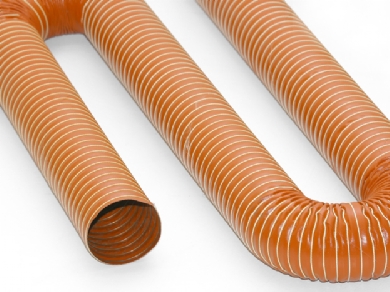

Click to enlarge - Lightweight ducting hose constructed from a wire helix and covered with a single layer of silicone coated glass fabric. Reinforced with a
single fibre glass retention cord.

Colour	Red
Cover	Silicone coated glass fabric
Reinforcement	Sprung steel wire and glass fibre cord
Remarks	Standard lengths of 4 metres. Fire retardant to DIN 4102 PA111/2.366
Application	Very high (or very low) temperature uses, turbochargers, etc. Any situation where high temperatures and low pressures combine.
Temperature	-70°C to +300°C.

ID	ID	Coil Sizes	WP	Working Vacuum	Bend Radius	Availability
Inch	mm	M	psi	mm water	mm
1"	25	4	0.47	5170	25	*
1 1/4"	32	4	0.47	5170	28	*
1 1/2"	38	4	0.47	5170	33	*
1 3/4"	45	4	0.44	5170	33	*
2"	51	4	0.44	5170	33	*
2 1/8"	54	4	0.44	4285	32	***
2 1/4"	57	4	0.44	4285	32	**
2 3/8"	60	4	0.40	4285	34	**
2 1/2"	63	4	0.40	3400	36	*
2 3/4"	70	4	0.40	3400	38	**
3"	76	4	0.40	3400	40	*
3 1/4"	80	4	0.37	3400	42	***
3 1/2"	90	4	0.37	2990	45	*
3 3/4"	96	4	0.37	2720	48	**
4"	102	4	0.37	2585	50	*
4 1/2"	114	4	0.34	2300	55	*
4 3/4"	120	4	0.34	2200	55	**
5"	127	4	0.34	2175	60	*
5 1/2"	140	4	0.30	2000	65	***
6"	152	4	0.27	1850	65	*
6 1/2"	165	4	0.27	1700	65	***
7"	178	4	0.24	1400	65	***
8"	203	4	0.24	1150	80	***
9"	229	4	0.20	1020	100	***
8	usually ex-stock	**	3-4 days from order	***	7-10 days from order
