Products
|
|
|
|
|
|
|
|
Camlock
-

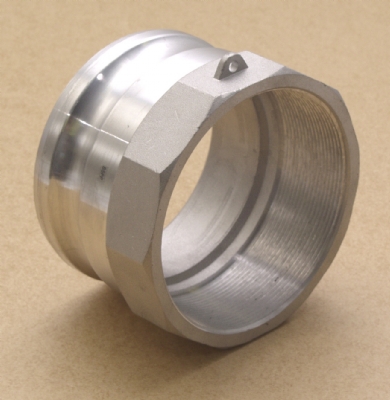

CAMLOCK - TYPE 'A'
|
|
|
|
|
|
Part ‘A’ ‘Camlock’ type coupling. Male Cam to BSP Female. All couplings are made to MIL-C-27487 specification. Threads parallel to BS2779
|
|
|
Notes
|
[*] All polypropylene couplings rated to 100 psi
|
| SIZE | Brass | Aluminium | Stainless | Polypropylene | |
| INCH | /Gunmetal | Alloy | Steel | | Working pressure |
| | | | | | Psi [*] |
| 1/2" - 05 | IC-ET-800B- 05A | 800A- 05A | 800SS- 05A | 800P- 05A | 150 |
| 3/4" - 07 | IC-ET-800B- 07A | 800A- 07A | 800SS- 07A | 800P- 07A | 250 |
| 1" - 10 | IC-ET-800B- 10A | 800A- 10A | 800SS- 10A | 800P- 10A | 250 |
| 1 1/4" - 12 | IC-ET-800B- 12A | 800A- 12A | 800SS- 12A | 800P- 12A | 250 |
| 1 1/2 - 15 | IC-ET-800B- 15A | 800A- 15A | 800SS- 15A | 800P- 15A | 250 |
| 2" - 20 | IC-ET-800B- 20A | 800A- 20A | 800SS- 20A | 800P- 20A | 250 |
| 2 1/2 - 25 | IC-ET-800B- 25A | 800A- 25A | 800SS- 25A | | 150 |
| 3" - 30 | IC-ET-800B- 30A | 800A- 30A | 800SS- 30A | 800P- 30A | 150 |
| 4" - 40 | IC-ET-800B- 40A | 800A- 40A | 800SS- 40A | | 100 |
| 5" - 50 | IC-ET-800B- 50A | 800A- 50A | 800SS- 50A | | 75 |
| 6" - 60 | IC-ET-800B- 60A | 800A- 60A | 800SS- 60A | | 75 |
| 8" - 80 | | 800A- 80A | 800SS- 80A | | 40 |
|
|
|
CAMLOCK A CAMLOCK - TYPE 'A'
Part ‘A’ ‘Camlock’ type coupling. Male Cam to BSP Female. All couplings are made to MIL-C-27487 specification. Threads parallel to BS2779
|
|
|
CAMLOCK B CAMLOCK - TYPE 'B'
Part ‘B’ ‘Camlock’ type coupling. Female Cam to BSP Male. All couplings are made to MIL-C-27487 specification. Threads tapered to BS21
|
|
|
CAMLOCK C CAMLOCK - TYPE 'C'
Part ‘C’ ‘Camlock’ type coupling. Female cam to hose tail. Made to MIL -C- 27487. Also available with self locking arms.
|
|
|
|
|
|
|
|
|
|
|
