Roman Seliger/Smooth Tail Couplings
-
Smooth Tail Couplings
|
|
|
|
|
|

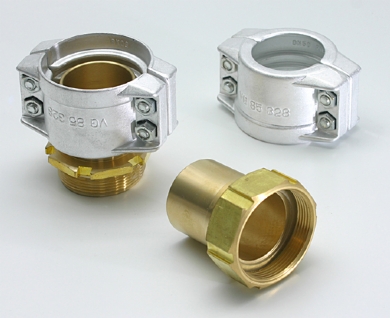

Smooth tail re-usable safety clamp couplings. Couplings in brass or stainless steel and clamped onto hose by means of an aluminium clamp. These couplings are made to DIN 14 420-5.
|
|
|
Notes
|
Recommended clamp – Only smooth tail re-usable Clamps are suitable.
Formerly to DIN 2817
|
| | | | | | |
| SIZE | SIZE | MALE | FEMALE | MALE | FEMALE |
| inch | mm | Brass | Brass | Stainless | Stainless |
| 1/2" | 13 | 351-05 | 350-05 | 351-05-SS | 352-05-SS |
| 3/4" | 19 | 351-07 | 350-07 | 351-07-SS | 352-07-SS |
| 1" | 25 | 351-10 | 350-10 | 351-10-SS | 352-10-SS |
| 1 1/4" | 32 | 351-12 | 350-12 | 351-12-SS | 352-12-SS |
| 1 1/2" | 38 | 351-15 | 350-15 | 351-15-SS | 352-15-SS |
| 2" | 50 | 351-20 | 350-20 | 351-20-SS | 352-20-SS |
| 2 1/2" | 65 | 351-25 | 350-25 | 351-25-SS | 352-25-SS |
| 3" | 75 | 351-30 | 350-30 | 351-30-SS | 352-30-SS |
| 4" | 100 | 351-40 | 350-40 | 351-40-SS | 352-40-SS |
|
|
|
|
|
Smooth Tail Couplings Smooth Tail Couplings
‘RS series’ flanged hose spigots with collar for use with ‘RSC series’ forged aluminium safety clamps.
These hose fittings provide a high degree of integrity when used with suction/delivery hoses. The clamp halves locate over a collar and are fastened by means of socket head screws.
|
|
|
Smooth Tail Couplings Smooth Tail Couplings
Smooth tail re-usable safety clamp couplings. Couplings in brass or stainless steel and clamped onto hose by means of an aluminium clamp. These couplings are made to DIN 14 420-5.
|
|
|
|
