Designation Ltd - 46 years and still going strong! - Roman Seliger/Smooth Tail Couplings - Smooth Tail Couplings - ‘RS series’ flanged hose spigots with collar for use with ‘RSC series’ forged aluminium safety clamps. These hose fittings provide a high degree of integrity when used with suction/delivery hoses. The clamp halves locate over a collar and are fastened by means of socket head screws.

‘RS series’ flanged hose spigots with collar for use with ‘RSC series’ forged aluminium safety clamps. These hose fittings provide a high degree of integrity when used with suction/delivery hoses. The clamp halves locate over a collar and are fastened by means of socket head screws.

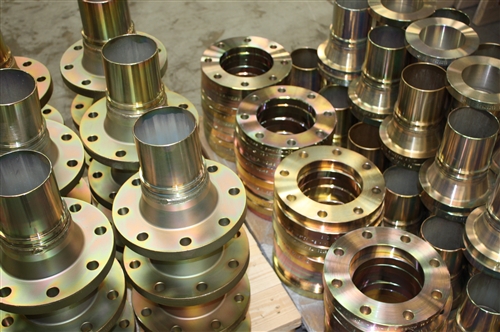

Click to enlarge - ‘RS series’ flanged hose spigots with collar for use with ‘RSC series’ forged aluminium safety clamps.

These hose fittings provide a high degree of integrity when used with suction/delivery hoses. The clamp halves locate over a collar and are fastened by means of socket head screws.

Notes

Other flange types available eg. BS10, ASA150 but may be subject to minimum orders

SIZE	SIZE	FLANGE	FLANGE	FLANGE [Swivel]	FLANGE [Swivel]
DIN	mm	PN16	PN16	PN16	PN16
		Mild Steel	Stainless Steel	Mild Steel	Stainless Steel

DN25	25	HC-400-25	HC-400-25SS	HC-401-25	HC-401-25SS
DN32	32	HC-400-32	HC-400-32SS	HC-401-32	HC-401-32SS
DN40	38	HC-400-38	HC-400-38SS	HC-401-38	HC-401-38SS
DN50	50	HC-400-50	HC-400-50SS	HC-401-50	HC-401-50SS
DN65	65	HC-400-65	HC-400-65SS	HC-401-65	HC-401-65SS
DN80	75	HC-400-80	HC-400-80SS	HC-401-80	HC-401-80SS
DN100	100	HC-400-100	HC-400-100SS	HC-401-100	HC-401-100SS
DN150	150	HC-400-150	HC-400-150SS	HC-401-150	HC-401-150SS
DN200	200	HC-400-200	HC-400-200SS	HC-401-200	HC-401-200SS


Back to previous page	Enquire about this product
