Quick Release Couplings For Air
-
AIR & WATER QUICK RELEASE COUPLINGS & ADAPTORS
|
|
|
|
|
|
A high flow coupling and interchangeable with many other types. This range gives superior flow characteristics and therefore cost savings. Available with many options including self venting couplings.
|
|
|
Notes
|
Series 23: Single shut off
Maximum working pressure: 500 psi
Temperature range: -20C + 100C
Interchangeable with: Dynaquip DC3, Cejn 310, Hansen 3000, Parker
|
| Style | Connection | Connection | Connection | Connection |
| | | | | |
| Coupler | 1/4" BSPT Male | 3/8" BSPT Male | 1/2" BSPT Male | |
| Coupler | 1/4" BSP Female | 3/8" BSP Female | 1/2" BSP Female | |
| Coupler | 1/4" Hose Tail | 5/16" Hose Tail | 3/8" Hose Tail | 1/2" Hose Tail |
| | | | | |
| Probe | 1/8" BSPT Male | 1/4" BSPT Male | 3/8" BSPT Male | |

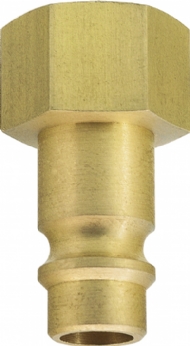

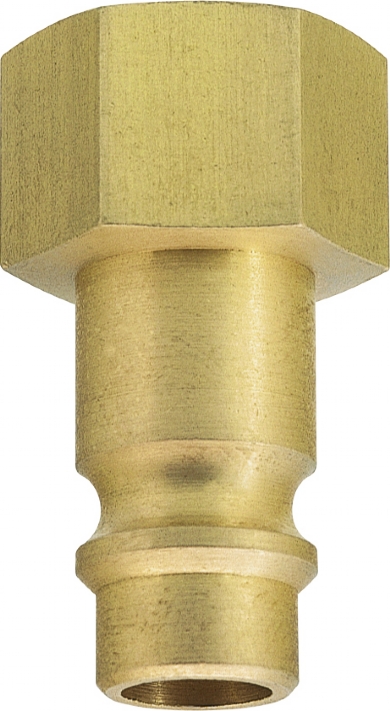

| Probe | 1/8" BSP Female | 1/4" BSP Female | 3/8" BSP Female | |
| Probe | 1/4" Hose Tail | 5/16" Hose Tail | 3/8" Hose Tail | 1/2" Hose Tail |
| | | | | |
| | | | | |
|
|
|
|
|
|
QUICK RELEASE COUPLINGS AIR & WATER QUICK RELEASE COUPLINGS & ADAPTORS
Another micro coupling but has high flow rates. One handed operation and available with a variety of end terminations. These couplings are used in robotics, dental, instrumentation and general pneumatics. Couplers and probes can be supplied with quick fit hose connections and panel mounting.
|
|
|
QUICK RELEASE COUPLINGS AIR & WATER QUICK RELEASE COUPLINGS & ADAPTORS
Series 21 quick acting compressed air coupling suitable for many uses. There are many options available for this product and is available in a variety of materials. Safety lock and thermoplastic styles can be supplied, again in all style combinations. All wearing parts are made from hardened steel.
|
|
|
|
|
QUICK RELEASE COUPLINGS AIR & WATER QUICK RELEASE COUPLINGS & ADAPTORS
This is a high capacity, medium pressure rated coupling suitable for many uses. Robust construction and is available in a variety of materials and styles including self-venting, rotating joints and safety lock. All wear parts are made from hardened steel. This coupling gives a high flow rate with a low pressure drop.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
