Quick Release Couplings For Air
-
AIR & WATER QUICK RELEASE COUPLINGS & ADAPTORS
|
|
|
|
|
|

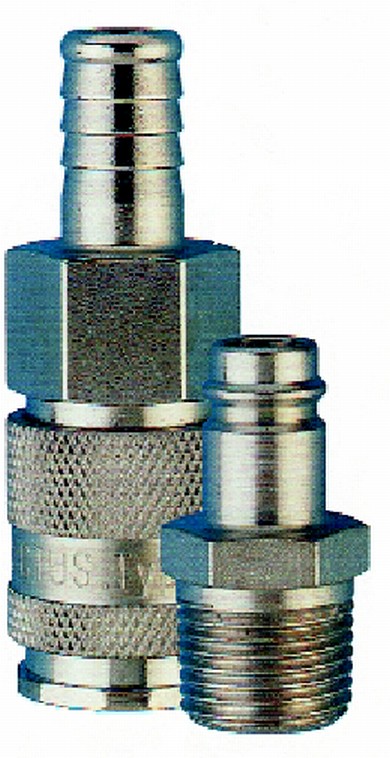

A very efficient and robust coupling designed for heavy duty applications. Very low pressure drop across the coupling so offers superb flow rates.
|
|
|
Notes
|
Series 27: Single and double shut off
Maximum working pressure: 500 psi
Temperature range: -20C +100C
Interchangeable with Cejn 410
|
| Style | | Connection | Connection | Connection |
| | | | | |
| Coupler | 1/4" BSPT Male | 3/8" BSPT Male | 1/2" BSPT Male | 3/4" BSPT Male |
| Coupler | 1/4" BSP Female | 3/8" BSP female | 1/2" BSP Female | 3/4" BSP Female |
| Coupler | 1/4" Hose Tail | 3/8" Hose Tail | 1/2" Hose Tail | 3/4" Hose Tail |
| | | | | |
| Probe | 1/4" BSPT Male | 3/8" BSPT Male | 1/2" BSPT male | 3/4" BSPT Male |
| Probe | 1/4" BSP Female | 3/8" BSP Female | 1/2" BSP Female | 3/4" BSP Female |
| Probe | 1/4" Hose Tail | 3/8" Hose Tail | 1/2" Hose Tail | 3/4" Hose Tail |
| | | | | |
|
|
|
|
|
|
QUICK RELEASE COUPLINGS AIR & WATER QUICK RELEASE COUPLINGS & ADAPTORS
Another micro coupling but has high flow rates. One handed operation and available with a variety of end terminations. These couplings are used in robotics, dental, instrumentation and general pneumatics. Couplers and probes can be supplied with quick fit hose connections and panel mounting.
|
|
|
QUICK RELEASE COUPLINGS AIR & WATER QUICK RELEASE COUPLINGS & ADAPTORS
Series 21 quick acting compressed air coupling suitable for many uses. There are many options available for this product and is available in a variety of materials. Safety lock and thermoplastic styles can be supplied, again in all style combinations. All wearing parts are made from hardened steel.
|
|
|
|
|
QUICK RELEASE COUPLINGS AIR & WATER QUICK RELEASE COUPLINGS & ADAPTORS
This is a high capacity, medium pressure rated coupling suitable for many uses. Robust construction and is available in a variety of materials and styles including self-venting, rotating joints and safety lock. All wear parts are made from hardened steel. This coupling gives a high flow rate with a low pressure drop.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
