    Quick Release Couplings For Air - AIR & WATER QUICK RELEASE COUPLINGS & ADAPTORS

This is a high capacity, medium pressure rated coupling suitable for many uses. Robust construction and is available in a variety of materials and styles including self-venting, rotating joints and safety lock. All wear parts are made from hardened steel. This coupling gives a high flow rate with a low pressure drop.

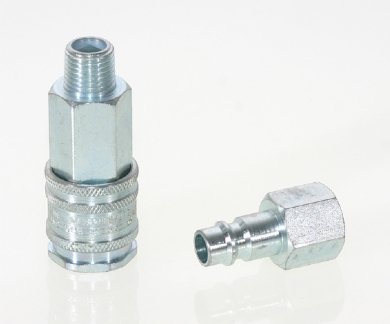

Click to enlarge - This is a high capacity, medium pressure rated coupling suitable for many uses. Robust construction and is available in a variety of materials and styles including self-venting, rotating joints and safety lock. All wear parts are made from hardened steel. This coupling gives a high flow rate with a low pressure drop.


Click to enlarge - This is a high capacity, medium pressure rated coupling suitable for many uses. Robust construction and is available in a variety of materials and styles including self-venting, rotating joints and safety lock. All wear parts are made from hardened steel. This coupling gives a high flow rate with a low pressure drop.
Temperature Temperature range: -20ºC + 100ºC

Interchangeable with Cejn 320
Pressure Maximum working 35 Bar

StyleConnectionConnectionConnectionConnection

Coupler1/4" BSPT Male3/8" BSPT Male1/2" BSPT Male
Coupler1/4" BSP Female3/8" BSP Female1/2" BSP Female
Coupler1/4" Hose Tail5/16" Hose Tail3/8" Hose Tail1/2" Hose Tail

Probe1/8" BSP Male1/4" BSP Male3/8" BSP Male1/2" BSP Male
Probe1/8" BSP Female1/4" BSP Female3/8" BSP Female1/2" BSP Female
Probe1/4" Hose Tail5/16" Hose Tail3/8" Hose Tail1/2" Hose Tail




Back to previous page Enquire about this product
