Silverflex Fuel and WRC Hose
-
GCNA Fuel Hose 2277
|
|
|
|
|
|

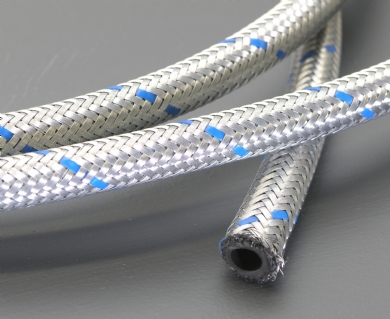

Synthetic rubber tube with a single textile braid over which a steel wire braid is laid. Very flexible and used for lubrication, oil and fuel lines. This hose is often used with the TCH range of fittings.
|
|
|
Colour
|
Self colour
|
|
Cover
|
Galvanised steel wire braid
|
|
Lining
|
Nitrile rubber
|
|
Reinforcement
|
Textile and steel braids
|
|
Specification
|
Silverflex
|
|
Remarks
|
Has blue tracer ribbon
|
|
Application
|
Smooth bore hose designed for fuel systems, hydraulic lines, air, lubrication lines and automotive.
|
|
Temperature
|
-35°C to +80°C.
|
| ID | OD | WP | Bend Radius | Weight/M | Availability |
| mm | mm | bar | mm | Gr/mt | |
| 4.5 | 10.5 | 30 | 40 | 140 | * |
| 5.5 | 11.5 | 30 | 40 | 160 | * |
| 7.5 | 13.5 | 30 | 50 | 190 | * |
| 9.5 | 16.5 | 25 | 60 | 290 | * |
| 11 | 18.5 | 25 | 70 | 330 | * |
| 15 | 24.0 | 25 | 85 | 480 | ** |
| * | Usually ex-stock | ** | 2 weeks | | |
|
|
|
