Silverflex Fuel and WRC Hose
-
VIRGO 2336
|
|
|
|
|
|

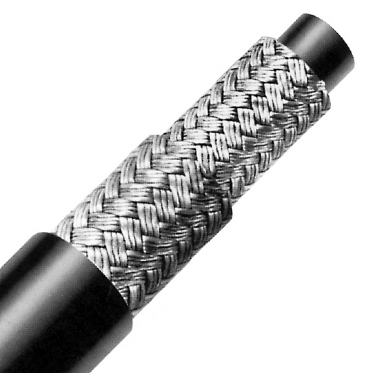

Synthetic rubber hose reinforced with a double textile braid. 2" size and above has a steel wire reinforcement.
|
|
|
Specification
|
Fully complies to DIN EN 854 3TE
|
|
Application
|
Designed for medium duty hydraulic return lines and pressure system.
|
|
Temperature
|
-40°C to +125°C.
|
| ID | ID | OD | WP | Bend Radius | Weight/M | Availability |
| mm | Inch | mm | bar | mm | Gr/mt | |
| 6 | 1/4" | 14.4 | 145 | 45 | 160 | * |
| 8 | 5/16" | 16.9 | 130 | 55 | 220 | * |
| 9 | 38" | 18.5 | 110 | 70 | 250 | * |
| 13 | 1/2" | 21.7 | 93 | 85 | 320 | * |
| 16 | 5/8" | 25.9 | 80 | 105 | 410 | * |
| 19 | 3/4" | 29 | 70 | 130 | 490 | ** |
| 25 | 1" | 35 | 55 | 150 | 640 | ** |
| 32 | 1 1/4" | 42 | 45 | 190 | 790 | ** |
| 38 | 1 1/2" | 49 | 40 | 240 | 1060 | ** |
| 50 | 2" | 62 | 33 | 300 | 1390 | ** |
| * | Usually ex-stock | ** | 2 weeks | | | |
|
|
|
GCNA Fuel Hose GCNA Fuel Hose 2234
‘Silverflex’ hose made from a synthetic tube and with a galvanised outer braid. The most popular of the Silverflex range. Full data is available on the rest of the range.
|
|
|
GCNA Fuel Hose GCNA WRAS Silverflex
This special range of WRAS approved hose is designed for use in industry and domestic installations. The EPDM bore is fully approved for contact with drinking water. End fittings are normally swaged to the hose using stainless ferrules.
|
|
|
GCNA Fuel Hose GCNA Fuel Hose 2277
Synthetic rubber tube with a single textile braid over which a steel wire braid is laid. Very flexible and used for lubrication, oil and fuel lines. This hose is often used with the TCH range of fittings.
|
|
|
VIRGO VIRGO 2335
As GCNA 2315 but DIN 20021/2. Extruded synthetic rubber hose designed for medium pressure application
|
|
|
VIRGO VIRGO 2336
Synthetic rubber hose reinforced with a double textile braid. 2" size and above has a steel wire reinforcement.
|
|
|
|
