Silverflex Fuel and WRC Hose
-

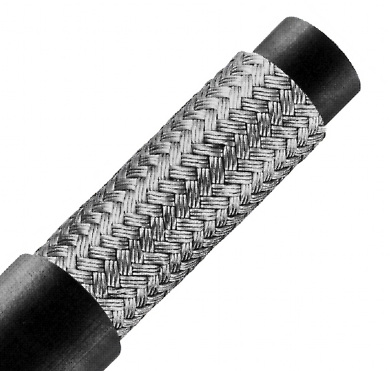

VIRGO 2335
|
|
|
|
|
|
As GCNA 2315 but DIN 20021/2. Extruded synthetic rubber hose designed for medium pressure application
|
|
|
Specification
|
Fully complies to DIN 20021/2.
|
|
Application
|
Smooth bore hose designed for fuel systems, lubrication, automotive and hydraulic lines.
|
|
Special Features
|
Pressure data shown is for dynamic
application.
|
|
Temperature
|
-40°C to +125°C.
|
| ID | ID | OD | WP | Bend Radius | Weight/M | Availability |
| mm | Inch | mm | bar | mm | Gr/mt | |
| 5 | 3/16" | 11.8 | 80 | 35 | 130 | * |
| 6 | 1/4" | 13.4 | 75 | 40 | 160 | * |
| 8 | 5/16" | 14.9 | 68 | 50 | 170 | * |
| 9.5 | 38" | 16.5 | 65 | 60 | 200 | * |
| 13 | 1/2" | 19.7 | 58 | 70 | 250 | * |
| 16 | 5/8" | 23.9 | 50 | 90 | 340 | * |
| 19 | 3/4" | 27 | 45 | 110 | 390 | * |
| 25 | 1" | 34.5 | 40 | 130 | 570 | * |
| * | Usually ex-stock | | | | | |
|
|
|
