    Food Quality / Steam Hose - NIAGARA 1161

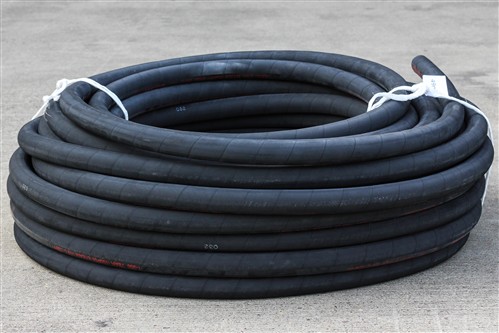

Black steam hose for use with saturated steam. Very flexible and made with heat, abrasion and ozone resistant rubber. Liner is made from a conductive EPDM rubber. For use with Boss type bolted steam couplings.

Click to enlarge - Black steam hose for use with saturated steam. Very flexible and made with heat, abrasion and ozone resistant rubber. Liner is made from a conductive EPDM rubber. For use with Boss type bolted steam couplings.


Click to enlarge - Black steam hose for use with saturated steam. Very flexible and made with heat, abrasion and ozone resistant rubber. Liner is made from a conductive EPDM rubber. For use with Boss type bolted steam couplings. Click to enlarge - Black steam hose for use with saturated steam. Very flexible and made with heat, abrasion and ozone resistant rubber. Liner is made from a conductive EPDM rubber. For use with Boss type bolted steam couplings.
Colour Wrapped black cover/Black liner
Cover Conductive EPDM
Lining Conductive EPDM
Reinforcement High tensile textile cords.
Specification Fully complies to BS 5122 CLASS A TYPE 2
Also available to DIN2825 & ISO 6134
Remarks Heat, abrasion and ozone resistant
6 bar working pressure for steam
15 bar working pressure for hot water
Application Saturated steam and hot water delivery for general industrial applications.
Temperature -40ºC + 170ºC

IDIDODWPWPWeightAvailability
InchmmmmpsibarKg/m
3/8"10219060.36*
1/2"13239060.37*
5/8"16269060.42**
3/4"19299060.47*
7/8"22359060.67**
1"25359060.58*
1 1/4"32469060.95*
1 1/2"38529071.10*
2"51679071.70*
2 3/8"60779072.05***
2 1/2"63799072.05**
*usually ex-stock**3-5 days***6 weeks
