    Food Quality / Steam Hose - VICTORIA 1511

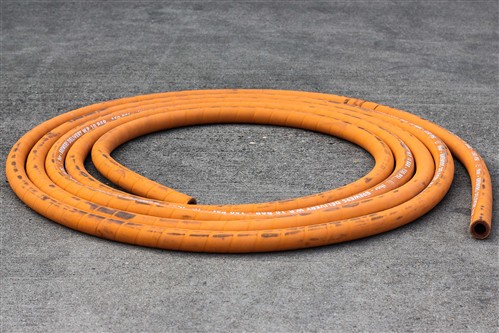

Orange brewers hose made from FDA approved materials. Used for water lines in induction furnaces. For use in all brewery installations and applications requiring a high quality drinking water hose.

Click to enlarge - Orange brewers hose made from FDA approved materials. Used for water lines in induction furnaces. For use in all brewery installations and applications requiring a high quality drinking water hose.


Click to enlarge - Orange brewers hose made from FDA approved materials. Used for water lines in induction furnaces. For use in all brewery installations and applications requiring a high quality drinking water hose. Click to enlarge - Orange brewers hose made from FDA approved materials. Used for water lines in induction furnaces. For use in all brewery installations and applications requiring a high quality drinking water hose.
Colour Orange cover/Orange liner
Cover SBR/Natural rubber abrasion and weather resistant
Lining Non-toxic red NR/SBR rubber
Reinforcement Multiple synthetic textile cords
Specification FDA Approved
Remarks Non-tainting of fluids
Non-conductive rubber
Application Breweries, water utilities and for use in induction furnaces
Special Features Safety ratio: 3:1
Temperature -25ºC + 80ºC
Steam sterilising to 120ºC permitted

IDIDODWPWPWeightBend RadiusAvailablity
InchmmmmpsibarKg/mmm
3/8"1020150100.36110*
1/2"1324150100.50150*
5/8"1630150100.80190*
3/4"1931150100.90200*
1"2537150101.10255*
1 1/4"3244150101.35275*
1 1/2"3852150101.55320*
2"5167150102.20400*
2 1/2"6381150103.15480**
3"7694150103.65650*
4"102122150105.35800*
*Usually ex-stock**5-7 days
