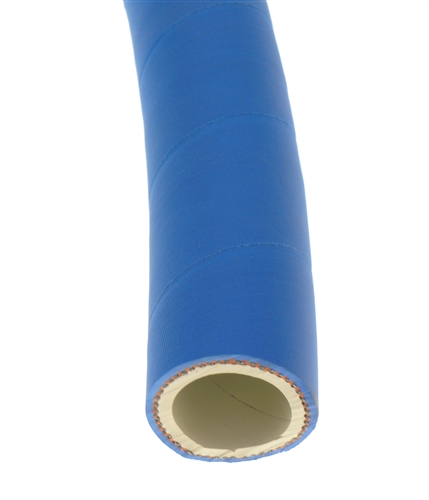

CHURCHILL 3000
|
|
|
|
|
|
Fully approved delivery hose for the transfer of aqueous,
fatty and alcoholic foods up to 96%. Phthalates free. Designed to work in all food industries and where the need for potable water transfer is required. WRAS approved product
|
|
|
Colour
|
Blue cover/White liner
|
|
Cover
|
Blue synthetic rubber
|
|
Lining
|
White
|
|
Reinforcement
|
High strength textile yarns
|
|
Remarks
|
WRAS to BS6920, FDA, UBA and DVGW Approved
|
|
Temperature
|
-30ºC to +60ºC
|
| Bore | Size | | Pressure | | Weight |
| Inch | mm | mm | psi | bar | Kg/m |
| 1" | 25 | 34 | 300 | 20 | 0.52 |
| 1 1/4" | 38 | 45 | 300 | 20 | 0.93 |
| 1 1/2" | 38 | 51 | 300 | 20 | 1.11 |
| 2" | 51 | 65 | 300 | 20 | 1.73 |
|
|
|
ANGEL ANGEL 1515
Dairy steam hose made from non-toxic materials. Very flexible and hard wearing. Can be used with saturated steam and hot water.
Designed primarily for wash down use in the food and dairy industry.
|
|
|
ANGEL ANGEL 8014
Blue food hose resistant to vegetable and animal oils for general use in food factories. Very flexible and pliable with a high working pressure and safety factor.
|
|
|
CHURCHILL CHURCHILL 2900
Food quality hose designed for use with fatty foodstuffs and alcoholic beverages. Flexible and tough, the cover is abrasion, ozone and oil resistant.
|
|
|
CHURCHILL CHURCHILL 3000
Fully approved delivery hose for the transfer of aqueous,
fatty and alcoholic foods up to 96%. Phthalates free. Designed to work in all food industries and where the need for potable water transfer is required. WRAS approved product
|
|
|
|
|
NIAGARA NIAGARA 1158
Top of the range steam hose. Wire braided for use with saturated and super heated steam. Used with bolt type finger lock clamps. This hose is very flexible and is resistant to abrasion and handles well in a tough environment.
Also available in black or white cover
|
|
|
NIAGARA NIAGARA 1161
Black steam hose for use with saturated steam. Very flexible and made with heat, abrasion and ozone resistant rubber. Liner is made from a conductive EPDM rubber. For use with Boss type bolted steam couplings.
|
|
|
NIAGARA NIAGARA 1162
White steam hose for use with saturated steam. Special compound to stop marking and therefore acceptable for use in food environments. This hose is specially designed for washdown use in the food and dairy industry.
|
|
|
VICTORIA VICTORIA 1511
Orange brewers hose made from FDA approved materials. Used for water lines in induction furnaces. For use in all brewery installations and applications requiring a high quality drinking water hose.
|
|
|
VICTORIA VICTORIA 2500
Orange brewers suction/delivery hose, wire reinforced and suitable for a variety of foodstuffs and beverages. Unique construction makes this a very flexible hose.
|
|
|
|
