Neoprene/Fabric Ductings
-

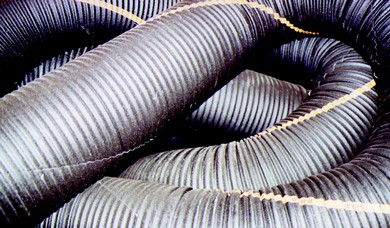

BERG DUCTING HOSE 3000
|
|
|
|
|
|
Similar to the old Wyrem, this heavy duty hose is made using a two ply process. This product offers a smooth bore for improved product flow. Designed for air,fumes and gases. Also suitable for light duty materials handling and dust collection.
|
|
|
Colour
|
Black
|
|
Cover
|
Double ply Chloroprene coated polyester fabric
|
|
Lining
|
Neoprene polyester fabric
|
|
Reinforcement
|
Double wire helix
|
|
Remarks
|
Data given is at 20ºC
|
|
Application
|
Used for handling hot air from dryers and blowers, grit, sand and dust in foundries. This hose should not be used in areas of locally high ambient temperatures.
|
|
Special Features
|
Excellent resistance to acids and many oils,
greases, etc. Good UV resistance and very flexible
|
|
Temperature
|
-20°C to +100°C.
|
| ID | ID | Weight | Coil Sizes | Bend Radius | Vacuum | Pressure |
| Inch | mm | g/m | M | mm | Bar | Bar |
| 1" | 25 | 420 | 6 | 60 | 0.45 | 0.35 |
| 1 1/4" | 32 | 500 | 6 | 63 | 0.40 | 0.35 |
| 1 1/2" | 38 | 570 | 6 | 65 | 0.40 | 0.35 |
| 1 3/4" | 45 | 650 | 6 | 68 | 0.35 | 0.35 |
| 2" | 51 | 720 | 6 | 71 | 0.35 | 0.35 |
| 2 1/2" | 63 | 750 | 6 | 77 | 0.35 | 0.35 |
| 3" | 76 | 770 | 6 | 84 | 0.30 | 0.35 |
| 3 1/2" | 90 | 850 | 6 | 93 | 0.25 | 0.35 |
| 4" | 102 | 1100 | 6 | 100 | 0.25 | 0.35 |
| 5" | 127 | 1460 | 6 | 119 | 0.20 | 0.35 |
| 6" | 152 | 1.920 | 6 | 139 | 0.10 | 0.35 |
| 8" | 203 | 3.230 | 6 | 189 | 0.05 | 0.35 |
| 10" | 254 | 4.990 | 6 | 250 | 0.05 | 0.35 |
| 12" | 305 | 7.180 | 6 | 319 | 0.05 | 0.35 |
| ** | Usually 3 days from order | | | | | |
|
|
|
BERG DUCTING HOSE BERG DUCTING HOSE 3000
Similar to the old Wyrem, this heavy duty hose is made using a two ply process. This product offers a smooth bore for improved product flow. Designed for air,fumes and gases. Also suitable for light duty materials handling and dust collection.
|
|
|
HARMATTAN HARMATTAN 6100
Single ply, spirally wound neoprene coated fabric with an internal spring wire helix and external neoprene coated cord. Designed for the conveyance of hot and cold particles at low pressure. very flexible and lightweight.
|
|
|
HARMATTAN HARMATTAN 6200
Neoprene impregnated canvas ducting hose over a sprung wire helix. A cotton textile yarn is applied to the cover and gives very good flexibility. Used in vehicle air ducts, fumes or light non abrasive powders.
|
|
|
|
