Products
|
|
|
|
|
|
|
|
Neoprene/Fabric Ductings
-

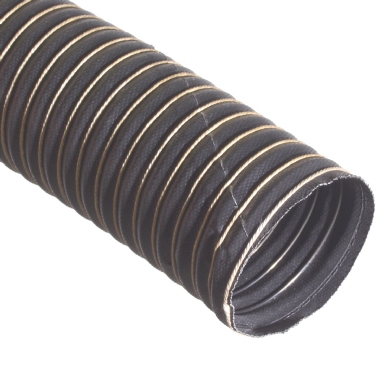

HARMATTAN 6100
|
|
|
|
|
|
Single ply, spirally wound neoprene coated fabric with an internal spring wire helix and external neoprene coated cord. Designed for the conveyance of hot and cold particles at low pressure. very flexible and lightweight.
|
|
|
Colour
|
Black
|
|
Application
|
Used in air intakes and for low pressure dust extraction. High degree of flexibility means this ducting can be fitted in tight spaces.
|
|
Special Features
|
Also available in anti-static version.
|
|
Temperature
|
-45°C to +150°C.
|
| ID | ID | Coil Sizes | WP | Bend Radius | Working Vacuum | Availability |
| Inch | mm | M | psi | mm | mm water | |
| 1" | 25 | 4 | 20 | 12 | 685 | * |
| 1 1/4" | 32 | 4 | 20 | 15 | 680 | * |
| 1 1/2" | 38 | 4 | 15 | 20 | 600 | * |
| 2" | 51 | 4 | 15 | 20 | 440 | * |
| 2 1/2" | 63 | 4 | 15 | 25 | 420 | * |
| 3" | 76 | 4 | 8 | 35 | 400 | * |
| 3 1/2" | 89 | 4 | 7 | 30 | 350 | ** |
| 4" | 102 | 4 | 7 | 35 | 350 | * |
| 5" | 127 | 4 | 5 | 45 | 250 | ** |
| 6" | 152 | 4 | 4 | 50 | 180 | ** |
| | 160 | 4 | 5 | 50 | 140 | *** |
| 7" | 178 | 4 | 5 | 53 | 100 | ** |
| 8" | 203 | 4 | 4 | 57 | 100 | ** |
| 9" | 229 | 4 | 4 | 68 | 100 | ** |
| 10" | 254 | 4 | 3 | 72 | 100 | *** |
| 12" | 305 | 4 | 2 | 85 | 100 | *** |
| * | Usually ex-stock | ** | 7-10 days | *** | On request | |
|
|
|
BERG DUCTING HOSE BERG DUCTING HOSE 3000
Similar to the old Wyrem, this heavy duty hose is made using a two ply process. This product offers a smooth bore for improved product flow. Designed for air,fumes and gases. Also suitable for light duty materials handling and dust collection.
|
|
|
HARMATTAN HARMATTAN 6100
Single ply, spirally wound neoprene coated fabric with an internal spring wire helix and external neoprene coated cord. Designed for the conveyance of hot and cold particles at low pressure. very flexible and lightweight.
|
|
|
HARMATTAN HARMATTAN 6200
Neoprene impregnated canvas ducting hose over a sprung wire helix. A cotton textile yarn is applied to the cover and gives very good flexibility. Used in vehicle air ducts, fumes or light non abrasive powders.
|
|
|
|
