Neoprene/Fabric Ductings
-
HARMATTAN 6200
|
|
|
|
|
|

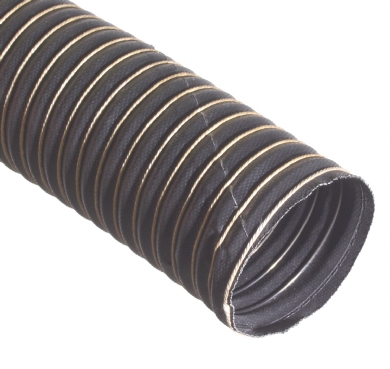

Neoprene impregnated canvas ducting hose over a sprung wire helix. A cotton textile yarn is applied to the cover and gives very good flexibility. Used in vehicle air ducts, fumes or light non abrasive powders.
|
|
|
Colour
|
Black
|
|
Cover
|
Neoprene coated and impregnated glassfibre fabric
|
|
Reinforcement
|
Wire helix and double cord neoprene glassfibre
|
|
Specification
|
Conforms to BS476 parts 6,7 and 20
|
|
Remarks
|
Standard 4 metre lengths
|
|
Application
|
Vehicle air ducts, fumes and light powders
|
|
Special Features
|
Very flexible and smooth bore
|
|
Temperature
|
-50°C to +150°C.
|
| ID | Weight | Working Vac | Working Pressure | Bend Radius | Availability |
| Inch | g/m | mbar | Kpa | mm | See under |
| 1" | 150 | 500 | 200 | 20 | * |
| 1 1/2" | 225 | 400 | 170 | 25 | * |
| 2" | 300 | 400 | 170 | 25 | * |
| 2 1/2" | 360 | 350 | 135 | 32 | * |
| 3" | 460 | 350 | 135 | 32 | * |
| 3 1/2" | 530 | 250 | 125 | 35 | ** |
| 4" | 600 | 200 | 103 | 38 | * |
| 5" | 850 | 200 | 68 | 44 | ** |
| 6" | 1100 | 150 | 50 | 51 | ** |
| 160mm | 1180 | 150 | 45 | 55 | *** |
| 7" | 1280 | 100 | 45 | 64 | ** |
| 8" | 1430 | 60 | 30 | 70 | ** |
| 10" | 2060 | 40 | 20 | 90 | *** |
| 12" | 2470 | 30 | 15 | 110 | *** |
| Lead times on request | *=Ex-stock | **=2 weeks | ***=4 weeks | | |
|
|
|
BERG DUCTING HOSE BERG DUCTING HOSE 3000
Similar to the old Wyrem, this heavy duty hose is made using a two ply process. This product offers a smooth bore for improved product flow. Designed for air,fumes and gases. Also suitable for light duty materials handling and dust collection.
|
|
|
HARMATTAN HARMATTAN 6100
Single ply, spirally wound neoprene coated fabric with an internal spring wire helix and external neoprene coated cord. Designed for the conveyance of hot and cold particles at low pressure. very flexible and lightweight.
|
|
|
HARMATTAN HARMATTAN 6200
Neoprene impregnated canvas ducting hose over a sprung wire helix. A cotton textile yarn is applied to the cover and gives very good flexibility. Used in vehicle air ducts, fumes or light non abrasive powders.
|
|
|
|
