Nylon and Polyurethane Tubes
-
BEAUFORT 9110
|
|
|
|
|
|
Flexible lightweight nylon tubing possessing good mechanical strength and resistant to a wide range of chemicals, liquids and gases. Can be used with push-in, compression and spigot type fittings.
|
|
|
Colour
|
For imperial sizes see 9100
|
|
Specification
|
Fully complies to BS 5409 : Parts 1 and 2.
Shore Hardness D60
UL94 Flame rating HB
|
|
Remarks
|
Very long lengths upon request although stocked coils are 30 metres.
|
|
Application
|
In pneumatic and hydraulic controls, automotive, lubricant, fuel, CO2 and air tubing.
|
|
Special Features
|
Can be used up to 110°C intermittantly.

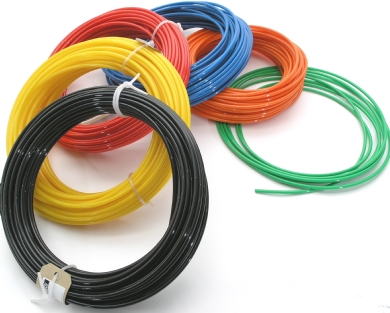

Available in natural, red, black, green, yellow, blue and orange on sizes up to 12mm OD. Larger diameters are generally natural or black.
|
|
Temperature
|
-40°C to +80°C.
|
| OD | ID | WP | Coil Sizes | Colour | Other Colours |
| mm | mm | psi | M | | |
| 4 | 2.5 | 415 | 30 | NATURAL | |
| 4 | 3 | 257 | 30 | NATURAL | Blue,Red,Yellow,Green and Black |
| 5 | 3 | 450 | 30 | NATURAL | Blue,Red, Yellow, Black |
| 5 | 3.3 | 377 | 30 | NATURAL | Blue,Red,Yellow,Green and Black |
| 6 | 4 | 358 | 30 | NATURAL | Blue,Red,Yellow,Green and Black |
| 6 | 4.5 | 261 | 30 | NATURAL | |
| 8 | 5.5 | 332 | 30 | NATURAL | Blue, Red, Black |
| 8 | 6 | 255 | 30 | NATURAL | Blue,Red,Yellow,Gree, and Black |
| 10 | 7 | 317 | 30 | NATURAL | Blue,Red,Yellow,Green,Black |
| 10 | 8 | 200 | 30 | NATURAL | Blue,Red,Yellow,Green and Black |
| 12 | 8.5 | 305 | 30 | NATURAL | |
| 12 | 9 | 257 | 30 | NATURAL | Blue,Red,Yellow,Green and Black |
| 14 | 10 | 164 | 30 | NATURAL | |
| 15 | 11 | 215 | 30 | NATURAL | Blue |
| 16 | 12 | 200 | 30 | NATURAL | |
| 18 | 13 | 186 | 30 | NATURAL | |
| 20 | 14 | 226 | 30 | NATURAL | |
| 22 | 16 | 200 | 30 | NATURAL | |
| 22 | 17 | 230 | 30 | NATURAL | |
| 22 | 18 | 180 | 30 | NATURAL | |
| 28 | 22 | 216 | 30 | NATURAL | |
|
|
|
