Products
|
|
|
|
|
|
|
|
Nylon and Polyurethane Tubes
-

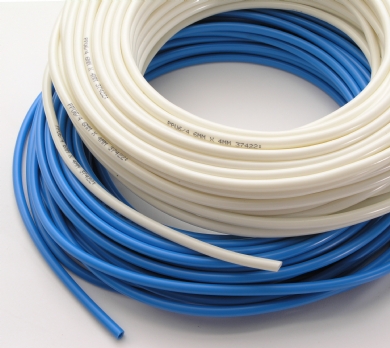

BEAUFORT 9720
|
|
|
|
|
|
Extruded from highly flexible polyurethane compound. This tube has been specifically designed for use with push fit couplings and is used for pneumatic lines.
|
|
|
Colour
|
Range of colours available
|
|
Remarks
|
Silicone free.
Exceptional abrasion resistance.
Highly flexible.
|
|
Application
|
Extensively used in pneumatics as the flexibility of the hose allows greatly reduced bend radius. Also for lubrication, chemicals and gases.
|
|
Special Features
|
Can also be made in red, natural, green and yellow. Ester based, low density and low weight
|
|
Temperature
|
-50°C to +55°C. Occasionally to +85C
|
| OD | ID | WP | Working Pressure | Bend Radius | Colours | Weight |
| mm | mm | psi | PSI | mm | | Per 30 metres |
| 4 | 2.5 | 185 | 185 | 6 | Blue,Black and White | 0.30 |
| 5 | 3 | 160 | 160 | 8 | Blue,Black and White | 0.45 |
| 6 | 4 | 150 | 150 | 11 | Blue,Black and White | 0.60 |
| 8 | 5.5 | 135 | 135 | 19 | Blue,Black and White | 1.00 |
| 8 | 6 | 120 | 120 | 23 | Blue,Black and White | 0.85 |
| 10 | 7.5 | 110 | 110 | 25 | Blue,Black and White | 1.30 |
| 12 | 9 | 100 | 100 | 40 | Blue,Black and White | 1.90 |
|
|
|
BEAUFORT BEAUFORT 9100
Flexible nylon tubing with high mechanical strength. Resistant to a wide variety of chemicals, liquids and gases. Suitable for push-in, compression and barbed fittings. Very low moisture absorption and has a mirror smooth finish.
|
|
|
BEAUFORT BEAUFORT 9101
Heat and light stabilised semi-rigid lightweight tubing. Can be used at high temperatures without compromising performance. Can be used with a variety of coupling types.
|
|
|
BEAUFORT BEAUFORT 9110
Flexible lightweight nylon tubing possessing good mechanical strength and resistant to a wide range of chemicals, liquids and gases. Can be used with push-in, compression and spigot type fittings.
|
|
|
BEAUFORT BEAUFORT 9111
Heat and light stabilised semi-rigid lightweight nylon tubing. Can withstand temperatures of up to 100°C without affecting performance.
Can be used with a variety of coupling types.
|
|
|
BEAUFORT BEAUFORT 9112
Pre-coiled nylon tubing fitted with 360°C swivel male couplings at both ends, complete with spring guards. Working lengths of 2.5, 5 and 10 metres. Can be made in polyurethane. Retains memory after use.
|
|
|
BEAUFORT BEAUFORT 9720
Extruded from highly flexible polyurethane compound. This tube has been specifically designed for use with push fit couplings and is used for pneumatic lines.
|
|
|
|
