Products
|
|
|
|
|
|
|
|
Nylon and Polyurethane Tubes
-

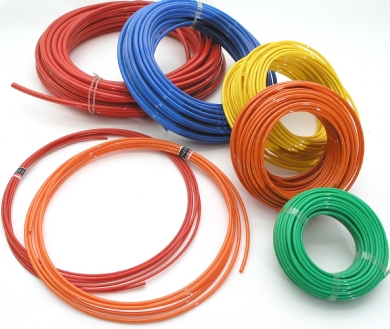

BEAUFORT 9100
|
|
|
|
|
|
Flexible nylon tubing with high mechanical strength. Resistant to a wide variety of chemicals, liquids and gases. Suitable for push-in, compression and barbed fittings. Very low moisture absorption and has a mirror smooth finish.
|
|
|
Specification
|
Fully complies to BS 5409 : Parts 1 and 2.
|
|
Remarks
|
Very long lengths upon request although stocked coils are 30 metres.
|
|
Application
|
Pneumatic and hydraulic control lines automotive, airbrake, lubricant and fuel tubing.
|
|
Special Features
|
For metric sizes see 9110
|
|
Temperature
|
-20ºC to + 80ºC
|
| OD | ID | WP | Coil Sizes | Bend Radius | | | Colours | | | |
| Inch | Inch | psi | M | mm | | | | | | |
| 1/8" | 0.075 | 725 | 30 | 8 | Natural | Red | Green | Black | Blue | Yellow |
| 3/16" | 0.137 | 305 | 30 | 12 | Natural | | | | | |
| 3/16" | 0.117 | 455 | 30 | 10 | Natural | Red | Green | Black | Blue | Yellow |
| 1/4" | 0.190 | 270 | 30 | 25 | Natural | | | | | |
| 1/4" | 0.170 | 375 | 30 | 12 | Natural | Red | Green | Black | Blue | Yellow |
| 5/16" | 0.242 | 250 | 30 | 32 | Natural | | | | | |
| 5/16" | 0.212 | 375 | 30 | 22 | Natural | Red | Green | Black | Blue | Yellow |
| 3/8" | 0.250 | 400 | 30 | 25 | Natural | Red | Green | Black | Blue | Yellow |
| 1/2" | 0.375 | 285 | 30 | 38 | Natural | Red | Green | Black | Blue | Yellow |
| 5/8" | 0.500 | 220 | 30 | 63 | Natural | | | | | |
| 3/4" | 0.594 | 225 | 30 | 102 | Natural | | | | | |
| 1" | 0.813 | 205 | 30 | 178 | Natural | | | | | |
|
|
|
BEAUFORT BEAUFORT 9100
Flexible nylon tubing with high mechanical strength. Resistant to a wide variety of chemicals, liquids and gases. Suitable for push-in, compression and barbed fittings. Very low moisture absorption and has a mirror smooth finish.
|
|
|
BEAUFORT BEAUFORT 9101
Heat and light stabilised semi-rigid lightweight tubing. Can be used at high temperatures without compromising performance. Can be used with a variety of coupling types.
|
|
|
BEAUFORT BEAUFORT 9110
Flexible lightweight nylon tubing possessing good mechanical strength and resistant to a wide range of chemicals, liquids and gases. Can be used with push-in, compression and spigot type fittings.
|
|
|
BEAUFORT BEAUFORT 9111
Heat and light stabilised semi-rigid lightweight nylon tubing. Can withstand temperatures of up to 100°C without affecting performance.
Can be used with a variety of coupling types.
|
|
|
BEAUFORT BEAUFORT 9112
Pre-coiled nylon tubing fitted with 360°C swivel male couplings at both ends, complete with spring guards. Working lengths of 2.5, 5 and 10 metres. Can be made in polyurethane. Retains memory after use.
|
|
|
BEAUFORT BEAUFORT 9720
Extruded from highly flexible polyurethane compound. This tube has been specifically designed for use with push fit couplings and is used for pneumatic lines.
|
|
|
|
